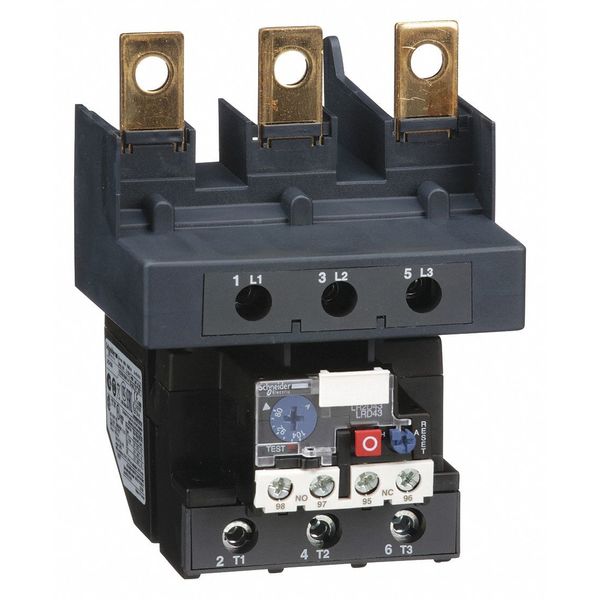

Ovrload Rely, 95 to 120A, Class 10, 3P, 690V

SKU
Brand Square D
Categories
Description Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 120 A, Minimum Overload Relay Current Setting 90 A, Trip Class 10A, Maximum Voltage Rating 1000V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
graingerSKU: 2MMY2, mscSKU: , zoro_no: G1325152, mongo_id: 65bbe7cf3aaddbd5a90b935e

Web Price

$664.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C without derating IEC 60947-4-1

Ambient Air Temperature For Storage -60-70ÃÂ°C

Associated Fuse Rating 4 A gG signalling circuit || 4 A BS signalling circuit

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contact Form 1NO/1NC

Body Depth 5.2 in

Body Depth - Relay 5.19 in

Body Height 4.29 in

Body Height - Relay 4.29 in

Body Width 2.92 in

Body Width - Relay 2.92 in

Climatic Withstand IACS E10

Compatible with Series TeSys Deca

Connections - Terminals power circuit screw clamp terminals 1 4-35 mmÃÂ² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mmÃÂ² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mmÃÂ² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mmÃÂ² solid without cable end || power circuit screw clamp terminals 1 4-50 mmÃÂ² flexible without cable end || power circuit screw clamp terminals 1 4-50 mmÃÂ² solid without cable end

Control Type Red push-button stop || Blue push-button reset

Country of Origin (subject to change) France

Current Range 95.0 to 120A

Depth 5.19

Device Short Name LRD

Dielectric Strength 2.2 kV 50 Hz IEC 60947-1

Features Single Phase Sensitivity

Flame Retardance V1 conforming to UL 94

For Use With LC1D115 thru LC1D150 IEC Contactors

Height 4.29

Includes Mounting Hardware Not Applicable

Ip Degree Of Protection IP20 conforming to IEC 60529

IP Rating IP20

Item - Relay IEC Style Overload Relay

Maximum Operating Temperature 140 Degrees F

Maximum Overload Relay Current Setting 120 A

Maximum Voltage Rating 1000V AC

Mechanical Robustness vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7

Minimum Operating Temperature -4 Degrees F

Minimum Overload Relay Current Setting 90 A

Mounting Style Direct To Contactor

Mounting Support plate, with specific accessories || rail, with specific accessories || under contactor

NEMA Size Not Applicable

Network Frequency 0 to 400 Hz

Network Type AC || DC

Number of Poles 3

Overall Height 4.29 in

Overall Height - Relay 4.29 in

Overload Protection Type Thermal

Overload Relay Current Range 90 to 120A

Package Quantity 1

Permissible Current 0.06 A 440 V DC-13 signalling circuit || 0.12 A 600 V AC-15 signalling circuit

Phase Failure Sensitivity tripping current 130 % of Ir on two phase, the last one at 0

Product Certifications IEC || UL || CSA || CCC || EAC || ATEX INERIS

Product Compatibility LC1D150 || LC1D115

Product Name TeSys LRD || TeSys Deca

Product Or Component Type differential thermal overload relay

Range TeSys

Relay Application motor protection

Relay Style IEC

Reset Type Auto, Manual

Reset Type - Relay Manual

Sensing Method Bimetallic

Standards CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1

Starter Type IEC

Temperature Compensation -20-60ÃÂ°C

Terminal Connection Type Screw Clamp Terminals

Thermal Overload Class class 10A IEC 60947-4-1

Thermal Protection Adjustment Range 95-120 A

Tightening Torque control circuit 1.7 N.m screw clamp terminals || power circuit 9 N.m screw clamp terminals

Trip Class 10A

Trip Class - Overload 10

Tripping Threshold 1.14 +/- 0.06 Ir IEC 60947-4-1

Use With - Contactors and Starters Mfr. Series LC1D115 to LC1D150 Contactors

Width 2.92

[Ith] Conventional Free Air Thermal Current 5 A signalling circuit
