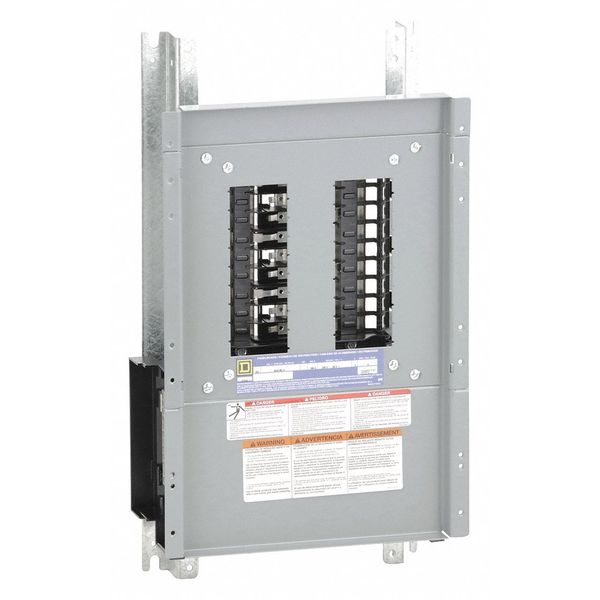

Panelbrd Interior, 100A, 208Y/120V

SKU
Brand Square D
Categories
Description Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series QHB, QOB, QOB-VH, Amps 100 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 18, Voltage 120/208 to 240V AC, Phase 3, Bus Material Copper, Recommended Enclosure 1D687 for Main Lug, 6B429 for Main Breaker, Circuit Breaker Type Plug In Miniature, For Use With NQ Circuit Breakers, Height 27 in, Depth 5 3/4 in, Width 10 7/16 in, Recommended Flush Cover 3TX77 for Main Lug, 3TX81 for Main Breaker
graingerSKU: 4HGY5, mscSKU: , zoro_no: G1954391, mongo_id: 65bbee31526e052139af5da2

Web Price

$531.24 / each

Qty

Product Details

Amps 100 A

Branch Circuit Breaker Type QOB; QOB-VH; QHB

Bus Material Copper

Circuit Breaker Series QHB, QOB, QOB-VH

Circuit Breaker Type Plug In Miniature

Connections - Terminals Lug line AWG 6 to AWG 2/0 aluminium; Lug neutral AWG 6 to AWG 2/0 aluminium

Country of Origin (subject to change) Mexico

Depth 5 3/4 in

Enclosure Nominal Depth 5.75 in (146.05 mm) NEMA 1; 6.5 in (165.10 mm) NEMA 3R/5/12

Enclosure Nominal Height 26 in (660.40 mm)

Enclosure Nominal Width 20 in (508.00 mm)

Features Mercury Free

For Use With NQ Circuit Breakers

Height 27 in

Main Circuit Breaker or Main Lug Convertible, Main Lug

Number Of Phases 3 phase

Number of Spaces 18

Package Quantity 1

Panelboard Type Main lugs

Phase 3

Product Or Component Type Interiors

Rated Interrupted Current 10 kA; 22 kA; 65 kA

Recommended Enclosure 1D687 for Main Lug, 6B429 for Main Breaker

Recommended Flush Cover 3TX77 for Main Lug, 3TX81 for Main Breaker

Recommended Ground Bar Kit 5B716

Recommended Surface Cover 3TX78 for Main Lug, 3TX82 for Main Breaker

Short Circuit Current Rating 100000 RMS Symmetrical

Standards CSA Approved, UL Listed

Tightening Torque 40.01 to 50.01 lbf.in (4.52 to 5.65 N.m) 0.02 to 0.10 inÃÂ² (13.30 to 67.43 mmÃÂ²) (AWG 6 to AWG 2/0); 100.01 lbf.in (11.3 N.m) 0.02 to 0.10 inÃÂ² (13.30 to 67.43 mmÃÂ²) (AWG 6 to AWG 2/0); 274.99 lbf.in (31.07 N.m) 0.02 to 0.27 inÃÂ² (13.30 to 177.3 mmÃÂ²) (AWG 6 to 350 kcmil); 274.99 lbf.in (31.07 N.m) 0.02 to 0.20 inÃÂ² (13.30 to 126.7 mmÃÂ²) (AWG 6 to 250 kcmil); 274.99 lbf.in (31.07 N.m) 0.17 to 0.24 inÃÂ² (107.2 to 152 mmÃÂ²) (AWG 4 to 300 kcmil)

Voltage 120/208 to 240V AC

Voltage Rating 240 V AC; 48 V DC

Width 10 7/16 in

Wiring Configuration 4-wire
