Panelbrd Interior, 125A, 480Y/277VAC

SKU
Brand Square D
Categories

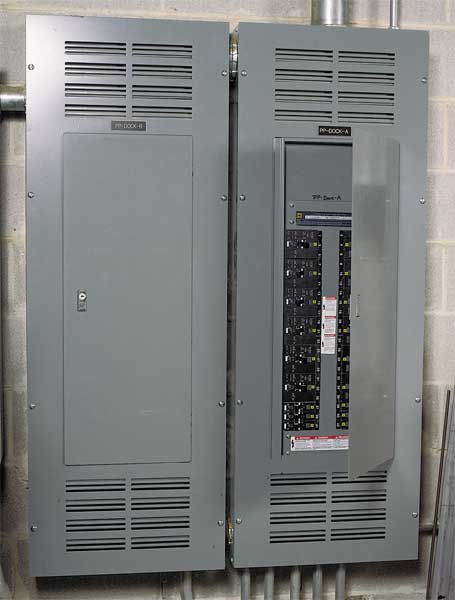

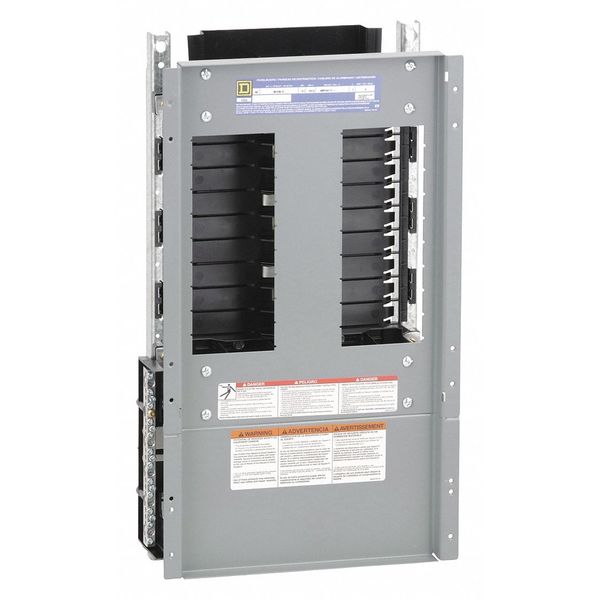

Description Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series EDB, EDG, EDJ, Amps 125 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 18, Voltage 277/480YV AC, Phase 3, Bus Material Copper, Recommended Enclosure 1D687 for Main Lug, 6B429 for Main Breaker, Circuit Breaker Type Plug In Miniature, For Use With NF Circuit Breakers, Height 21 in, Depth 5 3/4 in, Width 10 7/16 in, Recommended Flush Cover 3TX77 for Main Lug, 3TX81 for Main Breaker
graingerSKU: 3TZ02, mscSKU: , zoro_no: G0333961, mongo_id: 65bbe9db22d7a989a99805a2

Web Price

$1,929.90 / each

Qty

Product Details

Amps 125 A

Branch Circuit Breaker Type EDB/EDG/EDJ

Bus Material Copper

Circuit Breaker Series EDB, EDG, EDJ

Circuit Breaker Type Plug In Miniature

Connections - Terminals Lug line AWG 6 to AWG 2/0 aluminium/copper; Lug neutral AWG 6 to AWG 2/0 aluminium

Country of Origin (subject to change) Mexico

Depth 5 3/4 in

Enclosure Nominal Depth 5.75 in (146.05 mm) NEMA 1; 6.5 in (165.10 mm) NEMA 3R/5/12

Enclosure Nominal Height 38 in (965.20 mm); 26 in (660.40 mm)

Enclosure Nominal Width 20 in (508.00 mm)

Features Mercury Free

For Use With NF Circuit Breakers

Height 21 in

Main Circuit Breaker or Main Lug Convertible, Main Lug

Number Of Phases 3 phase

Number of Spaces 18

Package Quantity 1

Panelboard Type Main lugs

Phase 3

Rated Interrupted Current 65 kA

Recommended Enclosure 1D687 for Main Lug, 6B429 for Main Breaker

Recommended Flush Cover 3TX77 for Main Lug, 3TX81 for Main Breaker

Recommended Surface Cover 3TX78 for Main Lug, 3TX82 for Main Breaker

Short Circuit Current Rating 100000 RMS Symmetrical

Standards CSA C22.2, UL 67

Tightening Torque 40.01 to 50.01 lbf.in (4.52 to 5.65 N.m) 0.02 to 0.10 inÃÂ² (13.30 to 67.43 mmÃÂ²) (AWG 6 to AWG 2/0); 100.01 lbf.in (11.3 N.m) 0.02 to 0.10 inÃÂ² (13.30 to 67.43 mmÃÂ²) (AWG 6 to AWG 2/0); 274.99 lbf.in (31.07 N.m) 0.02 to 0.27 inÃÂ² (13.30 to 177.3 mmÃÂ²) (AWG 6 to 350 kcmil); 274.99 lbf.in (31.07 N.m) 0.02 to 0.20 inÃÂ² (13.30 to 126.7 mmÃÂ²) (AWG 6 to 250 kcmil); 274.99 lbf.in (31.07 N.m) 0.17 to 0.24 inÃÂ² (107.2 to 152 mmÃÂ²) (AWG 4 to 300 kcmil)

Voltage 277/480YV AC

Voltage Rating 600Y/347 V AC

Width 10 7/16 in

Wiring Configuration 4-wire
