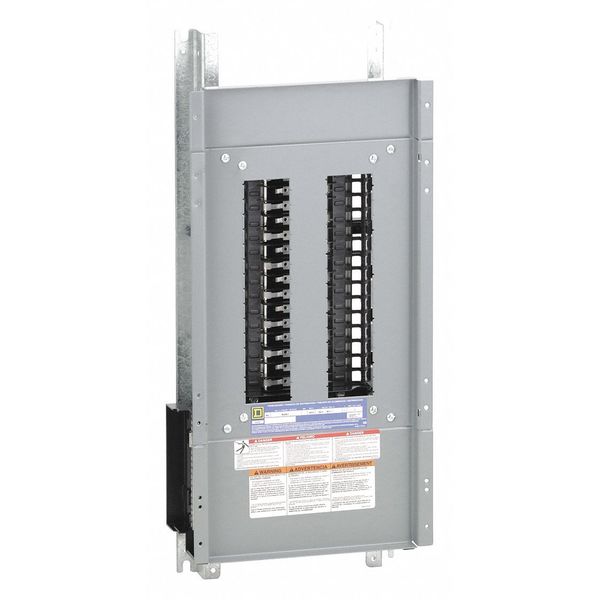

Panelbrd Interior, 225A, 120/240V

SKU
Brand Square D
Categories
Description Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series QHB, QOB, QOB-VH, Amps 225 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 30, Voltage 120/240V AC, Phase 1, Bus Material Aluminum, Recommended Enclosure 1D691 for Main Lug, 1D698 for Main Breaker, Circuit Breaker Type Plug In Miniature, For Use With NQ Circuit Breakers, Height 27 in, Depth 5 3/4 in, Width 10 7/16 in, Main Circuit Breaker Adapter Kit 4HHA3, 4HHA4, Mfr. No. NQMB2KI
graingerSKU: null, mscSKU: null, zoro_no: G0411266, mongo_id: 65bbe5f53aaddbd5a9ff8db6

Web Price

$616.24 / each

Qty

Product Details

Amps 225 A

Branch Circuit Breaker Type QOB; QOB-VH; QHB

Bus Material Aluminum

Busbar Material Aluminium

Circuit Breaker Series QHB, QOB, QOB-VH

Circuit Breaker Type Plug In Miniature

Country of Origin (subject to change) Mexico

Depth 5 3/4 in

Enclosure Nominal Depth 5.75 in (146.05 mm) NEMA 1; 6.5 in (165.10 mm) NEMA 3R/5/12

Enclosure Nominal Height 32 in (812.80 mm)

Enclosure Nominal Width 20 in (508.00 mm)

Features Mercury Free

For Use With NQ Circuit Breakers

Height 27 in

Main Circuit Breaker Adapter Kit 4HHA3, 4HHA4, Mfr. No. NQMB2KI

Main Circuit Breaker or Main Lug Convertible, Main Lug

Number Of Phases 1 phase

Number of Spaces 30

Package Quantity 1

Panelboard Type Main lugs

Phase 1

Product Or Component Type Interiors

Rated Interrupted Current 10 kA; 22 kA; 65 kA

Recommended Enclosure 1D691 for Main Lug, 1D698 for Main Breaker

Recommended Flush Cover 4HGZ9 for Main Lug, 4HHA1 for Main Breaker

Recommended Ground Bar Kit 5B716

Recommended Surface Cover 3TX80 for Main Lug, 3TX84 for Main Breaker

Short Circuit Current Rating 100000 RMS Symmetrical

Standards CSA Approved, UL Listed

Tightening Torque 40.01 to 50.01 lbf.in (4.52 to 5.65 N.m) 0.02 to 0.10 inÃÂ² (13.30 to 67.43 mmÃÂ²) (AWG 6 to AWG 2/0); 100.01 lbf.in (11.3 N.m) 0.02 to 0.10 inÃÂ² (13.30 to 67.43 mmÃÂ²) (AWG 6 to AWG 2/0); 274.99 lbf.in (31.07 N.m) 0.02 to 0.27 inÃÂ² (13.30 to 177.3 mmÃÂ²) (AWG 6 to 350 kcmil); 274.99 lbf.in (31.07 N.m) 0.02 to 0.20 inÃÂ² (13.30 to 126.7 mmÃÂ²) (AWG 6 to 250 kcmil); 274.99 lbf.in (31.07 N.m) 0.17 to 0.24 inÃÂ² (107.2 to 152 mmÃÂ²) (AWG 4 to 300 kcmil)

Voltage 120/240V AC

Voltage Rating 240 V AC; 48 V DC

Width 10 7/16 in

Wiring Configuration 3-wire
