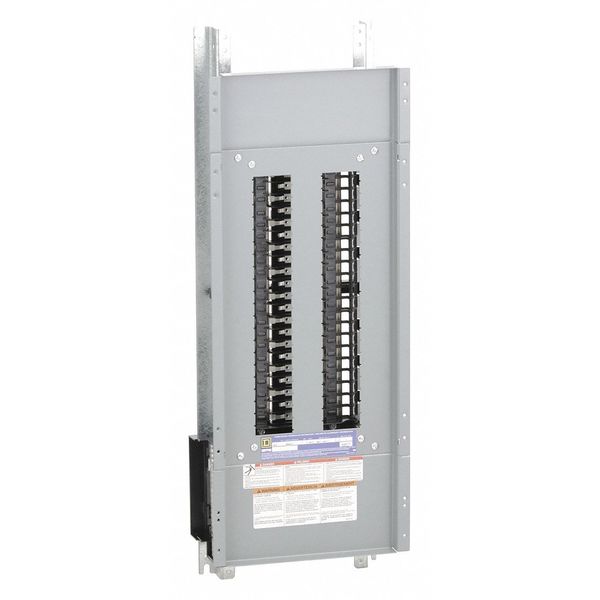

Panelbrd Interior, 225A, 120/240V

SKU
Brand Square D
Categories
Description Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series QHB, QOB, QOB-VH, Amps 225 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 42, Voltage 120/240V AC, Phase 1, Bus Material Copper, Recommended Enclosure 1D700 for Main Breaker, 6B429 for Main Lug, Circuit Breaker Type Plug In Miniature, For Use With NQ Circuit Breakers, Height 33 in, Depth 5 3/4 in, Width 10 7/16 in, Main Circuit Breaker Adapter Kit 4HHA3, 4HHA4, Mfr. No. NQMB2KI
graingerSKU: 4HGX6, mscSKU: , zoro_no: G1695041, mongo_id: 65bbe6393aaddbd5a90158be

Web Price

$749.99 / each

Qty

Product Details

Amps 225 A

Branch Circuit Breaker Type QOB; QOB-VH; QHB

Bus Material Copper

Circuit Breaker Series QHB, QOB, QOB-VH

Circuit Breaker Type Plug In Miniature

Country of Origin (subject to change) Mexico

Depth 5 3/4 in

Enclosure Nominal Depth 5.75 in (146.05 mm) NEMA 1; 6.5 in (165.10 mm) NEMA 3R/5/12

Enclosure Nominal Height 38 in (965.20 mm)

Enclosure Nominal Width 20 in (508.00 mm)

Features Mercury Free

For Use With NQ Circuit Breakers

Height 33 in

Main Circuit Breaker Adapter Kit 4HHA3, 4HHA4, Mfr. No. NQMB2KI

Main Circuit Breaker or Main Lug Convertible, Main Lug

Number Of Phases 1 phase

Number of Spaces 42

Package Quantity 1

Panelboard Type Main lugs

Phase 1

Product Or Component Type Interiors

Rated Interrupted Current 10 kA; 22 kA; 65 kA

Recommended Enclosure 1D700 for Main Breaker, 6B429 for Main Lug

Recommended Flush Cover 3TX91 for Main Breaker, 4HHA1 for Main Lug

Recommended Ground Bar Kit 5B716

Recommended Surface Cover 3TX82

Short Circuit Current Rating 100000 RMS Symmetrical

Standards CSA Approved, UL Listed

Tightening Torque 40.01 to 50.01 lbf.in (4.52 to 5.65 N.m) 0.02 to 0.10 inÃÂ² (13.30 to 67.43 mmÃÂ²) (AWG 6 to AWG 2/0); 100.01 lbf.in (11.3 N.m) 0.02 to 0.10 inÃÂ² (13.30 to 67.43 mmÃÂ²) (AWG 6 to AWG 2/0); 274.99 lbf.in (31.07 N.m) 0.02 to 0.27 inÃÂ² (13.30 to 177.3 mmÃÂ²) (AWG 6 to 350 kcmil); 274.99 lbf.in (31.07 N.m) 0.02 to 0.20 inÃÂ² (13.30 to 126.7 mmÃÂ²) (AWG 6 to 250 kcmil); 274.99 lbf.in (31.07 N.m) 0.17 to 0.24 inÃÂ² (107.2 to 152 mmÃÂ²) (AWG 4 to 300 kcmil)

Voltage 120/240V AC

Voltage Rating 240 V AC; 48 V DC

Width 10 7/16 in

Wiring Configuration 3-wire
