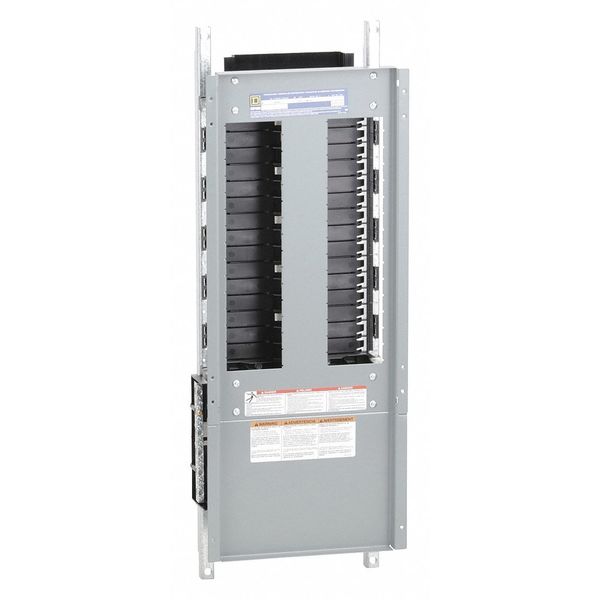

Panelbrd Interior, 250A, 480Y/277VAC

SKU
Brand Square D
Categories
Description Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series EDB, EDG, EDJ, Amps 250 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 30, Voltage 277/480YV AC, Phase 3, Bus Material Aluminum, Recommended Enclosure 1D700 for Main Breaker, 6B429 for Main Lug, Circuit Breaker Type Plug In Miniature, For Use With NF Circuit Breakers, Height 33 in, Depth 5 3/4 in, Width 10 7/16 in, Main Circuit Breaker Adapter Kit 22P070, Mfr. No. N250MKC
graingerSKU: 3TZ05, mscSKU: , zoro_no: G0413831, mongo_id: 65bbe92322d7a989a9938668

Web Price

$2,329.95 / each

Qty

Product Details

Amps 250 A

Branch Circuit Breaker Type EDB/EDG/EDJ

Bus Material Aluminum

Busbar Material Aluminium

Circuit Breaker Series EDB, EDG, EDJ

Circuit Breaker Type Plug In Miniature

Connections - Terminals Lug line AWG 6 to 350 kcmil aluminium; Lug neutral AWG 6 to 350 kcmil aluminium

Country of Origin (subject to change) Mexico

Depth 5 3/4 in

Enclosure Nominal Depth 5.75 in (146.05 mm) NEMA 1; 6.5 in (165.10 mm) NEMA 3R/5/12

Enclosure Nominal Height 38 in (965.20 mm); 50 in (1270.00 mm)

Enclosure Nominal Width 20 in (508.00 mm)

Features Mercury Free

For Use With NF Circuit Breakers

Height 33 in

Main Circuit Breaker Adapter Kit 22P070, Mfr. No. N250MKC

Main Circuit Breaker or Main Lug Convertible, Main Lug

Number Of Phases 3 phase

Number of Spaces 30

Package Quantity 1

Panelboard Type Main lugs

Phase 3

Rated Interrupted Current 65 kA

Recommended Enclosure 1D700 for Main Breaker, 6B429 for Main Lug

Recommended Flush Cover 4HGZ9 for Main Lug, 4HHA1 for Main Breaker

Recommended Ground Bar Kit 1D370

Recommended Surface Cover 3TX80 for Main Lug, 3TX84 for Main Breaker

Short Circuit Current Rating 100000 RMS Symmetrical

Standards CSA C22.2, UL 67

Tightening Torque 40.01 to 50.01 lbf.in (4.52 to 5.65 N.m) 0.02 to 0.10 inÃÂ² (13.30 to 67.43 mmÃÂ²) (AWG 6 to AWG 2/0); 100.01 lbf.in (11.3 N.m) 0.02 to 0.10 inÃÂ² (13.30 to 67.43 mmÃÂ²) (AWG 6 to AWG 2/0); 274.99 lbf.in (31.07 N.m) 0.02 to 0.27 inÃÂ² (13.30 to 177.3 mmÃÂ²) (AWG 6 to 350 kcmil); 274.99 lbf.in (31.07 N.m) 0.02 to 0.20 inÃÂ² (13.30 to 126.7 mmÃÂ²) (AWG 6 to 250 kcmil); 274.99 lbf.in (31.07 N.m) 0.17 to 0.24 inÃÂ² (107.2 to 152 mmÃÂ²) (AWG 4 to 300 kcmil)

Voltage 277/480YV AC

Voltage Rating 600Y/347 V AC

Width 10 7/16 in

Wiring Configuration 4-wire
