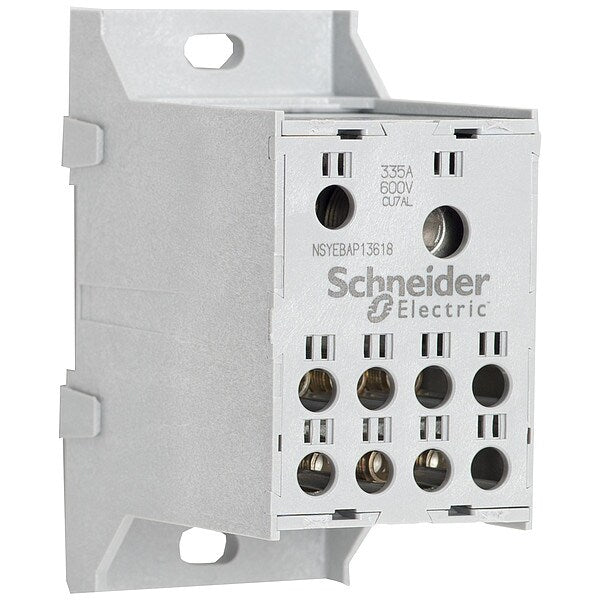

Power Distr Block, Al/Cu, 600V AC/DC

SKU
Brand Square D
Categories
Description Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 3/0 AWG, 400 kcmil, Load Connections/Pole 8, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 335 A, Maximum Voltage 600 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 3.14 in, Overall Length 4.39 in, Overall Width 2.26 in
graingerSKU: 796A63, mscSKU: , zoro_no: G305848755, mongo_id: 65bbe6e93aaddbd5a90607e1

Web Price

$157.49 / each

Qty

Product Details

Amps Al conductor: 270 A; Cu Conductor: 335 A

Color Gray

Country of Origin (subject to change) United States

Depth 3.14 in

Electrical Connection Tin plated Aluminium Lugs

Features Halogen free product; Mercury Free

For Conductor Material Aluminum, Copper

For Line Aluminum Wire Size - Maximum 3/0 AWG, 400 kcmil

For Line Aluminum Wire Size - Minimum 6 AWG

For Line Copper Wire Size - Maximum 3/0 AWG, 400 kcmil

For Line Copper Wire Size - Minimum 14 AWG

For Load Aluminum Wire Size - Maximum 2 AWG

For Load Aluminum Wire Size - Minimum 6 AWG

For Load Copper Wire Size - Maximum 2 AWG

For Load Copper Wire Size - Minimum 14 AWG

Housing Color Gray

Housing Material Thermoplastic

Length 4.39 in

Line Connections/Pole 1

Line Side Connection Type Lug

Line Side Wire Size Range 14 AWG - 400 kcmil

Load Connections/Pole 8

Load Side Connection Type Lug

Load Side Wire Range 14 AWG - 2 AWG

Material Thermoplastic

Max. Operating Temp. 257ÃÂ°F

Maximum Current - Aluminum Conductor 270 A

Maximum Current - Copper Conductor 335 A

Maximum Operating Temperature 257 Degrees F

Maximum Voltage 600 V AC/DC

Min. Operating Temp. -40ÃÂ°F

Minimum Operating Temperature -40 Degrees F

Mounting Screw Type; Panel

Number of Circuits 9

Number of Poles 1

Overall Depth 3.14 in

Overall Length 4.39 in

Overall Width 2.26 in

Package Quantity 1

Power Distribution Block Design Finger-Safe

Primary Connections/Pole 1

Primary Wire Range 14 to 3/0 AWG (Copper), 6 AWG to 400 kcmil (Aluminum), 6 AWG to 400 kcmil (Copper), 6 to 3/0 AWG (Aluminum)

Primary Wire Range (AWG) AWG 14 to AWG 3/0 (Copper); AWG 6 to AWG 3/0 (Aluminium); AWG 6 to 400 kcmil (Copper or Aluminium)

RoHS Compliant Yes

Secondary Connection/Pole 8

Secondary Wire Range 14 to 2 AWG (Copper), 6 to 2 AWG (Aluminum)

Secondary Wire Range (AWG) AWG 14 to AWG 2 (Copper); AWG 6 to AWG 2 (Aluminium)

Short Circuit Current Rating 100 kA

Special Features Enables Ganging of the Blocks to Create Multipole Configurations According to Application Requirements, Enclosed IEC Versions of our NEMA 9080 Power Distribution Blocks, Finger-Safe, One Pole Modular Units with an Interlocking Dovetail Feature, Power Terminal Blocks are Finger Safe from the Front According to IP20, This Block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with Fuses and Circuit Breakers, This Block is UL Listed and CSA Certified and RoHS Compliant

Standards CE Certified, CSA Certified, CSA File 70361 Class 6228 01, NEMA, REACH Regulation, UL Listed, UL Recognized E60616 CCN XCFR2, WEEE

Terminal Material Aluminum

Voltage Rating 600V AC/DC

Width 2.26 in

Wire Strip Length Line 1 in; Line 1.44 in; Load 0.63 in top; Load 0.63 in bottom
