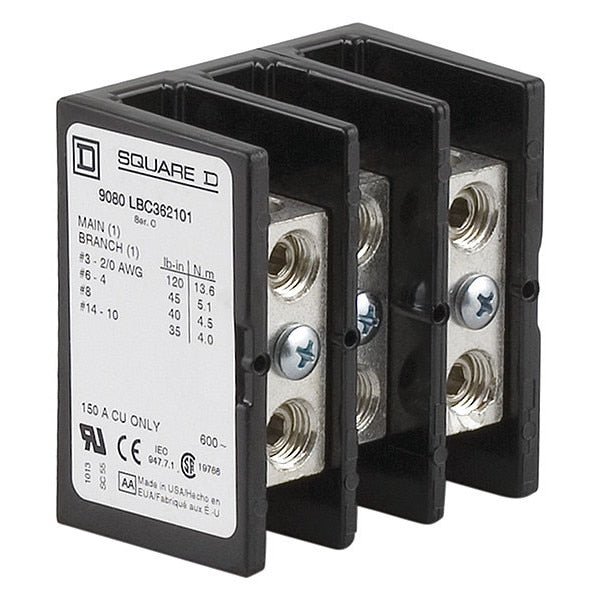

Power Distribution Block 600V 150A

SKU
Brand Square D
Categories
Description Power Distribution Block 600V 150A

Web Price

$289.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 302ÃÂ°F (-40 to 150ÃÂ°C)

Amps Cu Conductor: 150 A

Block Material Phenolic: block

Certifications UL recognized E60616 CCN XCFR2; CSA file 70361 class 6228 01; CE

Country of Origin (subject to change) United States

Current Rating 150 A copper

Depth 1.78 in

Electrical Connection Tin plated Copper Lugs

End Barrier 9080LB23

Features Mercury Free

Height 2.88 in (73.15 mm)

Length 2.88 in

Material Phenolic

Max. Operating Temp. 302ÃÂ°F

Min. Operating Temp. -40ÃÂ°F

Mounting Surface Mount

Number of Poles 3

Package Quantity 1

Primary Connections/Pole 1

Primary Wire Range (AWG) AWG 18 to AWG 1/0 (Copper)

Secondary Connection/Pole 1

Secondary Wire Range (AWG) AWG 18 to AWG 1/0 (Copper)

Short Circuit Current Rating 65 kA

Standards CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01

Terminal Tightening Torque Line lug 50 lbf.in (5.65 N.m) AWG 6 to AWG 1/0 copper; Line lug 40 lbf.in (4.52 N.m) AWG 8 copper; Line lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper; Load lug 50 lbf.in (5.65 N.m) AWG 6 to AWG 1/0 copper; Load lug 40 lbf.in (4.52 N.m) AWG 8 copper; Load lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper

Terminals Per Pole 1 line; 1 load

Voltage Rating 600V AC/DC

Width 2.75 in

Wire Size Line 1, AWG 18 to AWG 1/0, copper; Load 1, AWG 18 to AWG 1/0, copper

Wire Strip Length Line 0.75 in; Load 0.75 in

Wire Stripping Length Line: 0.75 in (19.05 mm); Load: 0.75 in (19.05 mm)
