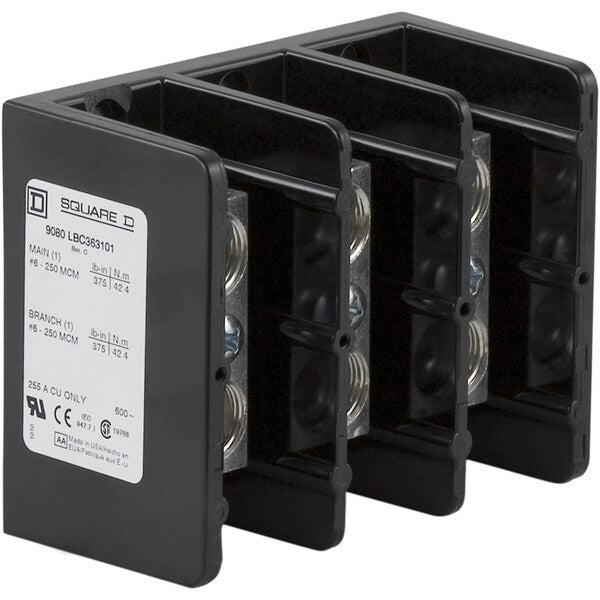

Power Distribution Block 600V 255A

SKU
Brand Square D
Categories
Description Power Distribution Block 600V 255A
graingerSKU: 48P759, mscSKU: , zoro_no: G0853800, mongo_id: 65bbe6823aaddbd5a9035748

Web Price

$292.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 302ÃÂ°F (-40 to 150ÃÂ°C)

Amps Cu Conductor: 255 A

Block Material Phenolic: block

Certifications CE; CSA file 70361 class 6228 01; UL recognized E60616 CCN XCFR2

Country of Origin (subject to change) United States

Current Rating 255 A copper

Depth 2.61 in

Electrical Connection Tin plated Copper Lugs

End Barrier 9080LB33

Features Mercury Free

Height 4 in (101.60 mm)

Length 4 in

Material Phenolic

Max. Operating Temp. 302ÃÂ°F

Min. Operating Temp. -40ÃÂ°F

Mounting Surface Mount

Number of Poles 3

Package Quantity 1

Primary Connections/Pole 1

Primary Wire Range (AWG) AWG 6 to 250 kcmil (Copper)

Secondary Connection/Pole 1

Secondary Wire Range (AWG) AWG 6 to 250 kcmil (Copper)

Short Circuit Current Rating 100 kA UL 508 A

Standards CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01

Terminal Tightening Torque Line lug 375 lbf.in (42.37 N.m) AWG 6 to 250 kcmil copper or aluminium; Load lug 375 lbf.in (42.37 N.m) AWG 6 to 250 kcmil copper or aluminium

Terminals Per Pole 1 line; 1 load

Voltage Rating 600V AC/DC

Width 5 in

Wire Size Line 1, AWG 6 to 250 kcmil, copper; Load 1, AWG 6 to 250 kcmil, copper

Wire Strip Length Line 1.19 in; Load 1.19 in

Wire Stripping Length Line: 1.19 in (30.23 mm); Load: 1.19 in (30.23 mm)
