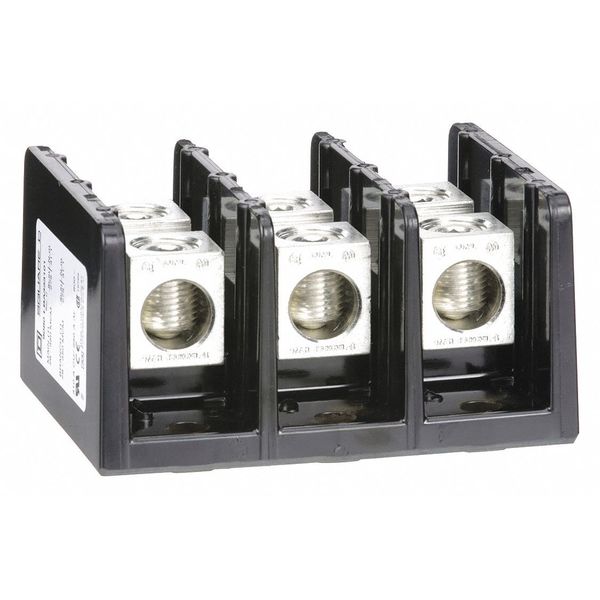

Power Distribution Block 600V 310A

SKU
Brand Square D
Categories
Description Power Distribution Block 600V 310A, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 1, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 350 kcmil, Maximum Current - Copper Conductor 310 A, Maximum Voltage 600 V AC/DC, Mounting Type Surface Mount, Number of Poles 3, Overall Depth 2.61 in, Overall Length 3.38 in, Overall Width 1.94 in
graingerSKU: 48P745, mscSKU: , zoro_no: G0571037, mongo_id: 65bbe94f22d7a989a994a169

Web Price

$129.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 302ÃÂ°F (-40 to 150ÃÂ°C)

Amps Al conductor: 250 A; Cu Conductor: 310 A

Block Material Phenolic: block

Certifications UL recognized E60616 CCN XCFR2; CE; CSA file 70361 class 6228 01

Country of Origin (subject to change) United States

Current Rating 310 A copper; 250 A aluminium

Depth 2.61 in

Electrical Connection Tin plated Aluminium Lugs

End Barrier 9080LB33

Features Mercury Free

For Conductor Material Aluminum, Copper

For Line Aluminum Wire Size - Maximum 350 kcmil

For Line Aluminum Wire Size - Minimum 6 AWG

For Line Copper Wire Size - Maximum 350 kcmil

For Line Copper Wire Size - Minimum 6 AWG

For Load Aluminum Wire Size - Maximum 350 kcmil

For Load Aluminum Wire Size - Minimum 6 AWG

For Load Copper Wire Size - Maximum 350 kcmil

For Load Copper Wire Size - Minimum 6 AWG

Height 3.38 in (85.85 mm)

Housing Color Black

Housing Material Phenolic

Length 3.38 in

Line Connections/Pole 1

Line Side Connection Type Lug

Line Side Wire Size Range 6 AWG - 350 kcmil

Load Connections/Pole 1

Load Side Connection Type Lug

Load Side Wire Range 6 AWG - 350 kcmil

Material Phenolic

Max. Operating Temp. 302ÃÂ°F

Maximum Current - Aluminum Conductor 250 A

Maximum Current - Copper Conductor 310 A

Maximum Operating Temperature 302 Degrees F

Maximum Voltage 600 V AC/DC

Min. Operating Temp. -40ÃÂ°F

Mounting Surface Mount

Number of Poles 3

Overall Depth 2.61 in

Overall Length 3.38 in

Overall Width 1.94 in

Package Quantity 1

Power Distribution Block Design Open

Primary Connections/Pole 1

Primary Wire Range (AWG) AWG 6 to 350 kcmil (Copper or Aluminium)

Secondary Connection/Pole 1

Secondary Wire Range (AWG) AWG 6 to 350 kcmil (Copper or Aluminium)

Short Circuit Current Rating 100 kA UL 508 A

Standards CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01

Terminal Material Aluminum

Terminal Tightening Torque Line lug 275 lbf.in (31.07 N.m) AWG 6 to 350 kcmil copper or aluminium; Load lug 275 lbf.in (31.07 N.m) AWG 6 to 350 kcmil copper or aluminium

Terminals Per Pole 1 line; 1 load

Voltage Rating 600V AC/DC

Weight 0.68 kg

Width 1.94 in

Wire Size Line 1, AWG 6 to 350 kcmil, copper or aluminium; Load 1, AWG 6 to 350 kcmil, copper or aluminium

Wire Strip Length Line 1.06 in; Load 1.06 in

Wire Stripping Length Line: 1.06 in (26.92 mm); Load: 1.06 in (26.92 mm)
