Power Distribution Block 600V 335A

SKU
Brand Square D
Categories

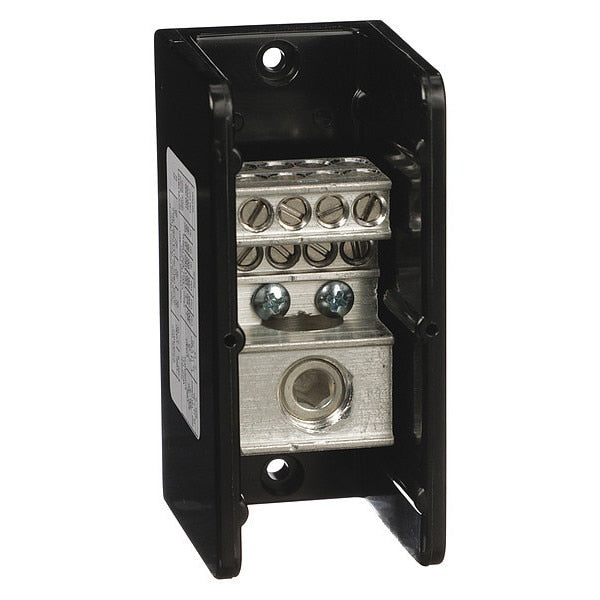

Description Power Distribution Block 600V 335A, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 400 kcmil, Load Connections/Pole 8, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 335 A, Maximum Voltage 600 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 2.91 in, Overall Length 4.75 in, Overall Width 2.28 in
graingerSKU: 48P740, mscSKU: , zoro_no: G0853697, mongo_id: 65bbe8e222d7a989a991f24d

Web Price

$83.56 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 302ÃÂ°F (-40 to 150ÃÂ°C)

Amps Al conductor: 270 A; Cu Conductor: 335 A

Block Material Phenolic: block

Certifications UL recognized E60616 CCN XCFR2; CE; CSA file 70361 class 6228 01

Country of Origin (subject to change) United States

Current Rating 335 A copper; 270 A aluminium

Depth 2.91 in

Electrical Connection Tin plated Aluminium Lugs

End Barrier 9080LB41

Features Mercury Free

For Conductor Material Aluminum, Copper

For Line Aluminum Wire Size - Maximum 400 kcmil

For Line Aluminum Wire Size - Minimum 6 AWG

For Line Copper Wire Size - Maximum 400 kcmil

For Line Copper Wire Size - Minimum 6 AWG

For Load Aluminum Wire Size - Maximum 2 AWG

For Load Aluminum Wire Size - Minimum 14 AWG

For Load Copper Wire Size - Maximum 2 AWG

For Load Copper Wire Size - Minimum 14 AWG

Height 4.75 in (120.65 mm)

Housing Color Black

Housing Material Phenolic

Length 4.75 in

Line Connections/Pole 1

Line Side Connection Type Lug

Line Side Wire Size Range 6 AWG - 400 kcmil

Load Connections/Pole 8

Load Side Connection Type Lug

Load Side Wire Range 14 AWG - 2 AWG

Material Phenolic

Max. Operating Temp. 302ÃÂ°F

Maximum Current - Aluminum Conductor 270 A

Maximum Current - Copper Conductor 335 A

Maximum Operating Temperature 302 Degrees F

Maximum Voltage 600 V AC/DC

Min. Operating Temp. -40ÃÂ°F

Mounting Surface Mount

Number of Poles 1

Overall Depth 2.91 in

Overall Length 4.75 in

Overall Width 2.28 in

Package Quantity 1

Power Distribution Block Design Open

Primary Connections/Pole 1

Primary Wire Range (AWG) AWG 6 to 400 kcmil (Copper or Aluminium)

Secondary Connection/Pole 8

Secondary Wire Range (AWG) AWG 14 to AWG 2 (Copper or Aluminium)

Short Circuit Current Rating 65 kA

Standards CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01

Terminal Material Aluminum

Terminal Tightening Torque Load lug 45 lbf.in (5.08 N.m) AWG 6 to AWG 4 copper or aluminium; Load lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium; Load lug 50 lbf.in (5.65 N.m) AWG 2 copper or aluminium; Line lug 275 lbf.in (31.07 N.m) AWG 6 to 400 kcmil copper or aluminium; Load lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper or aluminium

Terminals Per Pole 1 line; 8 load

Voltage Rating 600V AC/DC

Width 2.28 in

Wire Size Line 1, AWG 6 to 400 kcmil, copper or aluminium; Load 8, AWG 14 to AWG 2, copper or aluminium

Wire Strip Length Line 1.06 in; Load 0.56 in top; Load 1 in bottom

Wire Stripping Length Line: 1.06 in (26.92 mm); Load: 0.56 in (14.22 mm) for top connection; Load: 1 in (25.40 mm) for bottom connection
