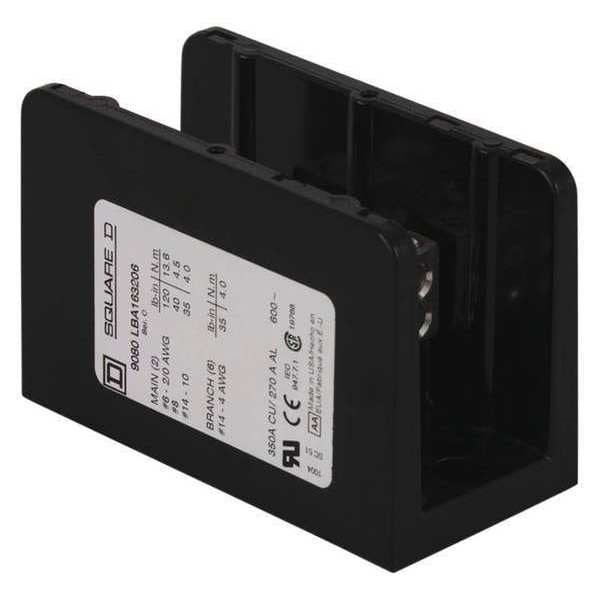

Power Distribution Block 600V 350A

SKU
Brand Square D
Categories
Description Power Distribution Block 600V 350A, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2/0 AWG, Load Connections/Pole 6, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 350 A, Maximum Voltage 600 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 2.61 in, Overall Length 4 in, Overall Width 1.94 in
graingerSKU: , mscSKU: , zoro_no: G0853679, mongo_id: 65bbe63f3aaddbd5a9018e01

Web Price

$72.69 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 302ÃÂ°F (-40 to 150ÃÂ°C)

Amps Al conductor: 270 A; Cu Conductor: 350 A

Block Material Phenolic: block

Country of Origin (subject to change) United States

Current Rating 270 A aluminium; 350 A copper

Depth 2.61 in

Electrical Connection Tin plated Aluminium Lugs

End Barrier 9080LB31

Features Mercury Free

For Conductor Material Aluminum, Copper

For Line Aluminum Wire Size - Maximum 2/0 AWG

For Line Aluminum Wire Size - Minimum 14 AWG

For Line Copper Wire Size - Maximum 2/0 AWG

For Line Copper Wire Size - Minimum 14 AWG

For Load Aluminum Wire Size - Maximum 4 AWG

For Load Aluminum Wire Size - Minimum 14 AWG

For Load Copper Wire Size - Maximum 4 AWG

For Load Copper Wire Size - Minimum 14 AWG

Height 4 in (101.60 mm)

Housing Color Black

Housing Material Phenolic

Length 4 in

Line Connections/Pole 2

Line Side Connection Type Lug

Line Side Wire Size Range 14 AWG - 2/0 AWG

Load Connections/Pole 6

Load Side Connection Type Lug

Load Side Wire Range 14 AWG - 4 AWG

Material Phenolic

Max. Operating Temp. 302ÃÂ°F

Maximum Current - Aluminum Conductor 270 A

Maximum Current - Copper Conductor 350 A

Maximum Operating Temperature 302 Degrees F

Maximum Voltage 600 V AC/DC

Min. Operating Temp. -40ÃÂ°F

Mounting Surface Mount

Number of Poles 1

Overall Depth 2.61 in

Overall Length 4 in

Overall Width 1.94 in

Package Quantity 1

Power Distribution Block Design Open

Primary Connections/Pole 2

Primary Wire Range (AWG) AWG 14 to AWG 2/0 (Copper or Aluminium)

Secondary Connection/Pole 6

Secondary Wire Range (AWG) AWG 14 to AWG 4 (Copper or Aluminium)

Short Circuit Current Rating 65 kA

Standards CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01

Terminal Material Aluminum

Terminal Tightening Torque Line lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium; Line lug 120 lbf.in (13.56 N.m) AWG 6 to AWG 2/0 copper or aluminium; Line lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper or aluminium; Load lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 4 copper or aluminium

Terminals Per Pole 6 load; 2 line

Voltage Rating 600V AC/DC

Width 1.94 in

Wire Size Line 2, AWG 14 to AWG 2/0, copper or aluminium; Load 6, AWG 14 to AWG 4, copper or aluminium

Wire Strip Length Load 0.44 in top; Load 0.75 in bottom; Line 1.06 in

Wire Stripping Length Load: 0.44 in (11.18 mm) for top connection; Load: 0.75 in (19.05 mm) for bottom connection; Line: 1.06 in (26.92 mm)
