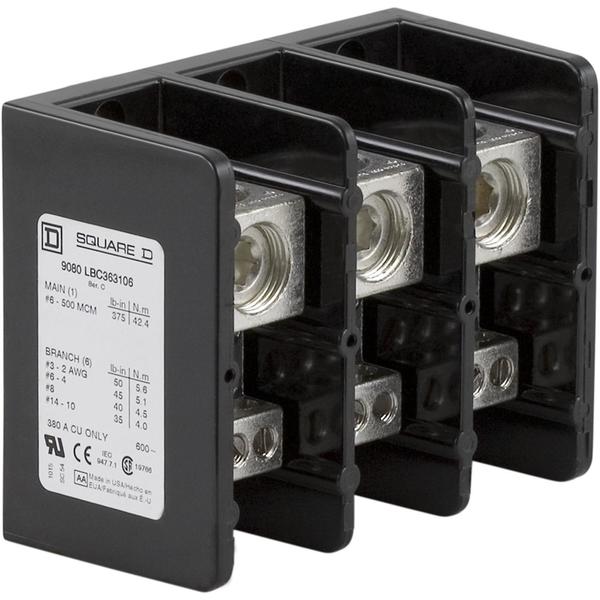

Power Distribution Block 600V 380A

SKU
Brand Square D
Categories
Description Power Distribution Block 600V 380A

Web Price

$463.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 302ÃÂ°F (-40 to 150ÃÂ°C)

Amps Cu Conductor: 380 A

Block Material Phenolic: block

Certifications CSA file 70361 class 6228 01; UL recognized E60616 CCN XCFR2; CE

Country of Origin (subject to change) United States

Current Rating 380 A copper

Depth 2.61 in

Electrical Connection Tin plated Copper Lugs

End Barrier 9080LB33

Features Mercury Free

Height 4 in (101.60 mm)

Length 4 in

Material Phenolic

Max. Operating Temp. 302ÃÂ°F

Min. Operating Temp. -40ÃÂ°F

Mounting Surface Mount

Number of Poles 3

Package Quantity 1

Primary Connections/Pole 1

Primary Wire Range (AWG) AWG 4 to 500 kcmil (Copper)

Secondary Connection/Pole 6

Secondary Wire Range (AWG) AWG 14 to AWG 2 (Copper)

Short Circuit Current Rating 100 kA UL 508 A

Standards CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01

Terminal Tightening Torque Load lug 40 lbf.in (4.52 N.m) AWG 8 copper; Load lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper; Line lug 375 lbf.in (42.37 N.m) AWG 4 to 500 kcmil copper; Load lug 50 lbf.in (5.65 N.m) AWG 2 copper; Load lug 45 lbf.in (5.08 N.m) AWG 6 to AWG 4 copper

Terminals Per Pole 1 line; 6 load

Voltage Rating 600V AC/DC

Width 5 in

Wire Size Line 6, AWG 4 to 500 kcmil, copper; Load 1, AWG 14 to AWG 2, copper

Wire Strip Length Line 1.06 in; Load 1 in bottom; Load 1.56 in top

Wire Stripping Length Line: 1.06 in (26.92 mm); Load: 1 in (25.40 mm) for bottom connection; Load: 1.56 in (39.62 mm) for top connection
