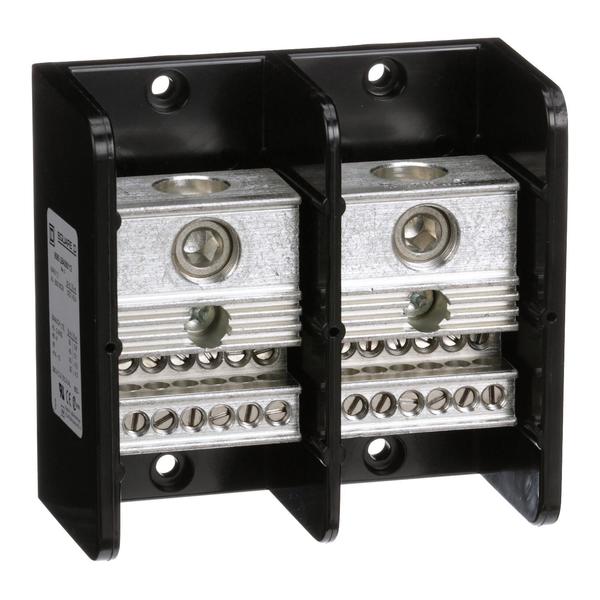

Power Distribution Block 600V 380A Tlb

SKU
Brand Square D
Categories
Description Power Distribution Block 600V 380A Tlb, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 12, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 380 A, Maximum Voltage 600 V AC/DC, Mounting Type Surface Mount, Number of Poles 2, Overall Depth 3.13 in, Overall Length 5.5 in, Overall Width 3.17 in
graingerSKU: , mscSKU: , zoro_no: G0853618, mongo_id: 65bbe5d73aaddbd5a9fedacc

Web Price

$258.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 302ÃÂ°F (-40 to 150ÃÂ°C)

Amps Al conductor: 310 A; Cu Conductor: 380 A

Block Material Phenolic: block

Certifications CE; CSA file 70361 class 6228 01; UL recognized E60616 CCN XCFR2

Country of Origin (subject to change) United States

Current Rating 380 A copper; 310 A aluminium

Depth 3.13 in

Electrical Connection Tin plated Aluminium Lugs

End Barrier 9080LB52

Features Mercury Free

For Conductor Material Aluminum, Copper

For Line Aluminum Wire Size - Maximum 500 kcmil

For Line Aluminum Wire Size - Minimum 4 AWG

For Line Copper Wire Size - Maximum 500 kcmil

For Line Copper Wire Size - Minimum 4 AWG

For Load Aluminum Wire Size - Maximum 2 AWG

For Load Aluminum Wire Size - Minimum 14 AWG

For Load Copper Wire Size - Maximum 2 AWG

For Load Copper Wire Size - Minimum 14 AWG

Height 5.5 in (139.70 mm)

Housing Color Black

Housing Material Phenolic

Length 5.5 in

Line Connections/Pole 1

Line Side Connection Type Lug

Line Side Wire Size Range 4 AWG - 500 kcmil

Load Connections/Pole 12

Load Side Connection Type Lug

Load Side Wire Range 14 AWG - 2 AWG

Material Phenolic

Max. Operating Temp. 302ÃÂ°F

Maximum Current - Aluminum Conductor 310 A

Maximum Current - Copper Conductor 380 A

Maximum Operating Temperature 302 Degrees F

Maximum Voltage 600 V AC/DC

Min. Operating Temp. -40ÃÂ°F

Mounting Surface Mount

Number of Poles 2

Overall Depth 3.13 in

Overall Length 5.5 in

Overall Width 3.17 in

Package Quantity 1

Power Distribution Block Design Open

Primary Connections/Pole 1

Primary Wire Range (AWG) AWG 4 to 500 kcmil (Copper or Aluminium)

Secondary Connection/Pole 12

Secondary Wire Range (AWG) AWG 14 to AWG 2 (Copper or Aluminium)

Short Circuit Current Rating 65 kA

Standards CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01

Terminal Material Aluminum

Terminal Tightening Torque Load lug 50 lbf.in (5.65 N.m) AWG 3 to AWG 2 copper or aluminium; Load lug 45 lbf.in (5.08 N.m) AWG 6 to AWG 4 copper or aluminium; Load lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium; Load lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper or aluminium; Line lug 375 lbf.in (42.37 N.m) AWG 4 to 500 kcmil copper or aluminium

Terminals Per Pole 1 line; 12 load

Voltage Rating 600V AC/DC

Width 3.17 in

Wire Size Line 1, AWG 4 to 500 kcmil, copper or aluminium; Load 12, AWG 14 to AWG 2, copper or aluminium

Wire Strip Length Line 1.31 in; Load 0.75 in top; Load 1.19 in bottom

Wire Stripping Length Line: 1.31 in (33.27 mm); Load: 0.75 in (19.05 mm) for top connection; Load: 1.19 in (30.23 mm) for bottom connection
