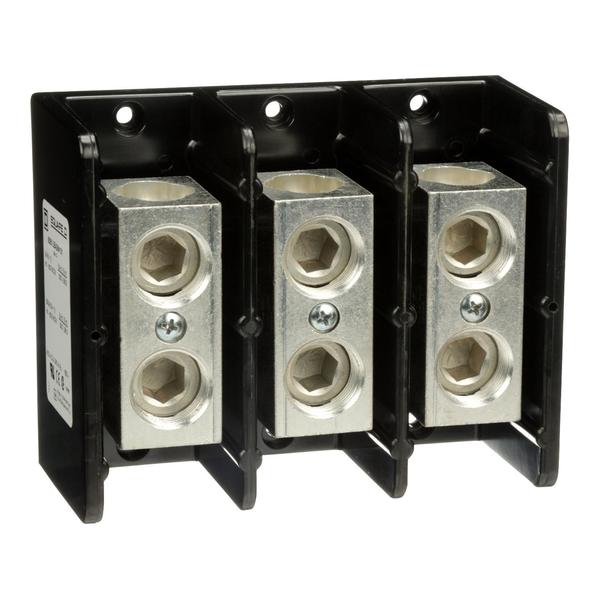

Power Distribution Block 600V 420A

SKU
Brand Square D
Categories
Description Power Distribution Block 600V 420A, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 600 kcmil, Load Connections/Pole 1, For Load Copper Wire Size - Minimum 4 AWG, For Load Copper Wire Size - Maximum 600 kcmil, Maximum Current - Copper Conductor 420 A, Maximum Voltage 600 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 2.91 in, Overall Length 4.75 in, Overall Width 2.28 in

Web Price

$131.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 302ÃÂ°F (-40 to 150ÃÂ°C)

Amps Al conductor: 340 A; Cu Conductor: 420 A

Block Material Phenolic: block

Country of Origin (subject to change) United States

Current Rating 420 A copper; 340 A aluminium

Depth 2.91 in

Electrical Connection Tin plated Aluminium Lugs

End Barrier 9080LB41

Features Mercury Free

For Conductor Material Aluminum, Copper

For Line Aluminum Wire Size - Maximum 600 kcmil

For Line Aluminum Wire Size - Minimum 4 AWG

For Line Copper Wire Size - Maximum 600 kcmil

For Line Copper Wire Size - Minimum 4 AWG

For Load Aluminum Wire Size - Maximum 600 kcmil

For Load Aluminum Wire Size - Minimum 4 AWG

For Load Copper Wire Size - Maximum 600 kcmil

For Load Copper Wire Size - Minimum 4 AWG

Height 4.75 in (120.65 mm)

Housing Color Black

Housing Material Phenolic

Length 4.75 in

Line Connections/Pole 1

Line Side Connection Type Lug

Line Side Wire Size Range 4 AWG - 600 kcmil

Load Connections/Pole 1

Load Side Connection Type Lug

Load Side Wire Range 4 AWG - 600 kcmil

Material Phenolic

Max. Operating Temp. 302ÃÂ°F

Maximum Current - Aluminum Conductor 340 A

Maximum Current - Copper Conductor 420 A

Maximum Operating Temperature 302 Degrees F

Maximum Voltage 600 V AC/DC

Min. Operating Temp. -40ÃÂ°F

Mounting Surface Mount

Number of Poles 1

Overall Depth 2.91 in

Overall Length 4.75 in

Overall Width 2.28 in

Package Quantity 1

Power Distribution Block Design Open

Primary Connections/Pole 1

Primary Wire Range (AWG) AWG 4 to 600 kcmil (Copper or Aluminium)

Secondary Connection/Pole 1

Secondary Wire Range (AWG) AWG 4 to 600 kcmil (Copper or Aluminium)

Short Circuit Current Rating 100 kA UL 508 A

Standards CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01

Terminal Material Aluminum

Terminal Tightening Torque Line lug 500 lbf.in (56.49 N.m) AWG 4 to 600 kcmil copper or aluminium; Load lug 500 lbf.in (56.49 N.m) AWG 4 to 600 kcmil copper or aluminium

Terminals Per Pole 1 line; 1 load

Voltage Rating 600V AC/DC

Width 2.28 in

Wire Size Line 1, AWG 4 to 600 kcmil, copper or aluminium; Load 1, AWG 4 to 600 kcmil, copper or aluminium

Wire Strip Length Line 1.38 in; Load 1.38 in

Wire Stripping Length Line: 1.38 in (35.05 mm); Load: 1.38 in (35.05 mm)
