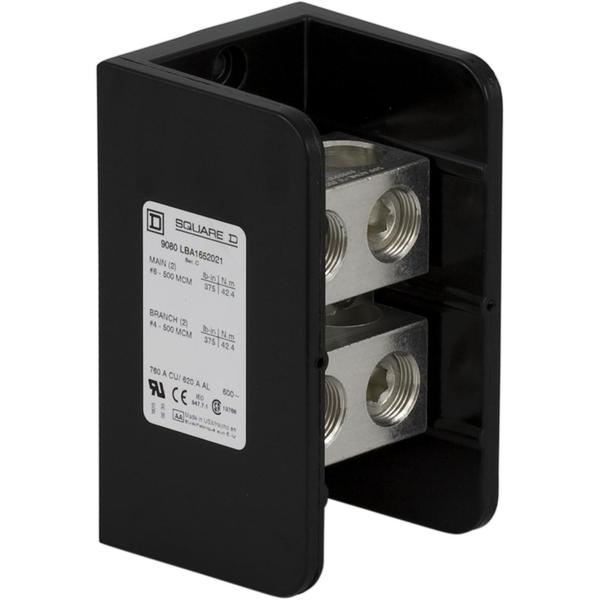

Power Distribution Block 600V 620A Tlb

SKU
Brand Square D
Categories
Description Power Distribution Block 600V 620A Tlb, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 2, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 350 kcmil, Maximum Current - Copper Conductor 620 A, Maximum Voltage 600 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 3.13 in, Overall Length 5.5 in, Overall Width 3.17 in
graingerSKU: 48P726, mscSKU: 69528297, zoro_no: G0853575, mongo_id: 65bbe72e3aaddbd5a907d203

Web Price

$133.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 302ÃÂ°F (-40 to 150ÃÂ°C)

Amps Al conductor: 500 A; Cu Conductor: 620 A

Block Material Phenolic: block

Country of Origin (subject to change) United States

Current Rating 620 A copper; 500 A aluminium

Depth 3.13 in

Electrical Connection Tin plated Aluminium Lugs

End Barrier 9080LB51

Features Mercury Free

For Conductor Material Aluminum, Copper

For Line Aluminum Wire Size - Maximum 350 kcmil

For Line Aluminum Wire Size - Minimum 6 AWG

For Line Copper Wire Size - Maximum 350 kcmil

For Line Copper Wire Size - Minimum 6 AWG

For Load Aluminum Wire Size - Maximum 350 kcmil

For Load Aluminum Wire Size - Minimum 6 AWG

For Load Copper Wire Size - Maximum 350 kcmil

For Load Copper Wire Size - Minimum 6 AWG

Height 5.5 in (139.70 mm)

Housing Color Black

Housing Material Phenolic

Length 5.5 in

Line Connections/Pole 2

Line Side Connection Type Lug

Line Side Wire Size Range 6 AWG - 350 kcmil

Load Connections/Pole 2

Load Side Connection Type Lug

Load Side Wire Range 6 AWG - 350 kcmil

Material Phenolic

Max. Operating Temp. 302ÃÂ°F

Maximum Current - Aluminum Conductor 500 A

Maximum Current - Copper Conductor 620 A

Maximum Operating Temperature 302 Degrees F

Maximum Voltage 600 V AC/DC

Min. Operating Temp. -40ÃÂ°F

Mounting Surface Mount

Number of Poles 1

Overall Depth 3.13 in

Overall Length 5.5 in

Overall Width 3.17 in

Package Quantity 1

Power Distribution Block Design Open

Primary Connections/Pole 2

Primary Wire Range (AWG) AWG 6 to 350 kcmil (Copper or Aluminium)

Secondary Connection/Pole 2

Secondary Wire Range (AWG) AWG 6 to 350 kcmil (Copper or Aluminium)

Short Circuit Current Rating 100 kA UL 508 A

Standards CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01

Terminal Material Aluminum

Terminal Tightening Torque Line lug 275 lbf.in (31.07 N.m) AWG 4 to 350 kcmil copper or aluminium; Load lug 275 lbf.in (31.07 N.m) AWG 4 to 350 kcmil copper or aluminium

Terminals Per Pole 2 line; 2 load

Voltage Rating 600V AC/DC

Width 3.17 in

Wire Size Line 2, AWG 6 to 350 kcmil, copper or aluminium; Load 2, AWG 6 to 350 kcmil, copper or aluminium

Wire Strip Length Line 1.06 in; Load 1.06 in

Wire Stripping Length Line: 1.06 in (26.92 mm); Load: 1.06 in (26.92 mm)
