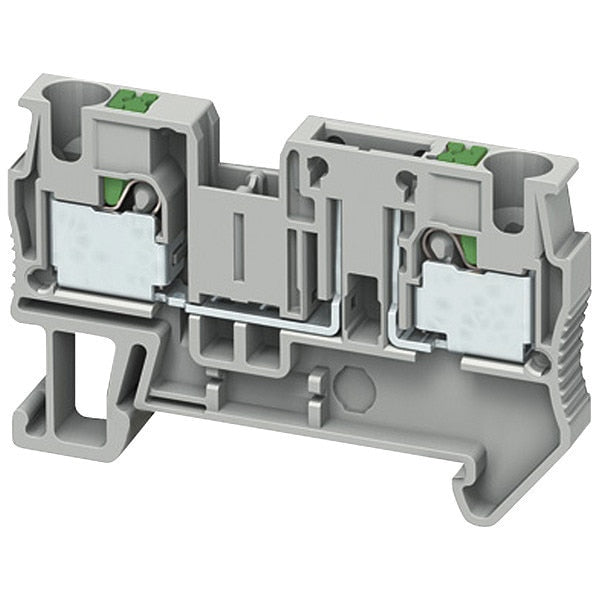

PUSH-IN TERMINAL, 20 A

PUSH-IN TERMINAL, 20 A

  • Square D
  • Push-In Terminal, Circuit Protection Type None, Connection Type Push-In, Current 20 A, For Minimum Wire Size 24 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 300 V AC, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter 5 mm, 6 mm, For Fuse Length 32 mm, Overall Depth 36.5 mm, Overall Length 56 mm, Overall Width 6.2 mm, Standards CSA, cULus, EAC, GL, VDE

    graingerSKU: 796A16, mscSKU: , zoro_no: G505907337, mongo_id: 65bbe97422d7a989a99587b5

Web Price
$6.74 / each
Qty

Product Details

-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
diode || cylindrical fuse || blade
0.2-4 mm², flexible without cable end || 0.2-6 mm², solid
None
Gray
Special Enclosures
top
Push-In
1 x push-in upstream || 1 x push-in downstream
Poland
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
20 A
TRP
3.7 at 1 MHz
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
1000 V IEC 60243-1
V0 0.8 mm UL 94
Not Applicable
Not Applicable
5 mm, 6 mm
32 mm
12 AWG
24 AWG
5 x 20 mm || 6 x 32 mm
36.5 mm
Gray
Polyamide 6/6
56 mm
20-20 A EN/IEC 60947-7-1 || 20-20 A cURus || 20-20 A CSA
polyamide 6/6 insulating case
266 Degrees F
300 V AC
-40 Degrees F
clip-on
4 mm²
2
2
1
2
1
36.5 mm
56 mm
6.2 mm
1
CSA || EAC || cURus || VDE || GL
Spacial enclosures
Linergy TR
terminal block
Linergy
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Yes
CSA, cULus, EAC, GL, VDE
10 mm
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
1
Removable Carrier Disconnect
disconnection flat screwdriver || connection without tool
V-0
6.2 mm
24 AWG - 12 AWG
10 mm
400 V EN/IEC 60947-7-1 || 300 V cURus || 300 V CSA
