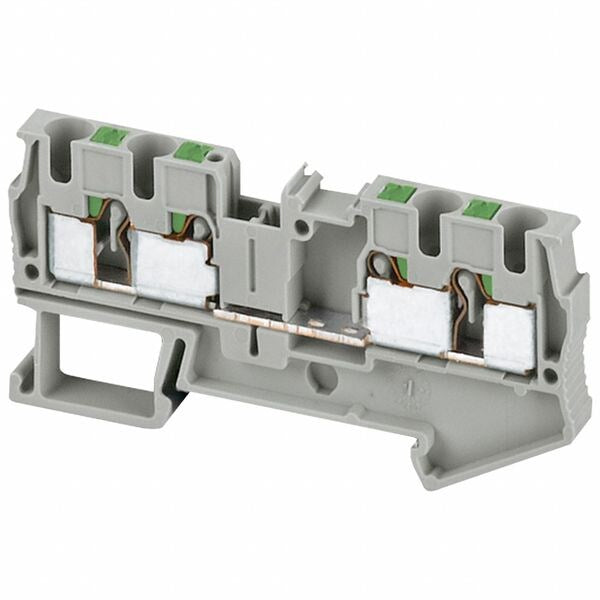

PUSH-IN TERMINAL, 30 A

PUSH-IN TERMINAL, 30 A

  • Square D
  • Push-In Terminal, Circuit Protection Type None, Connection Type Push-In, Current 30 A, For Minimum Wire Size 24 AWG, For Maximum Wire Size 10 AWG, Housing Color Gray, Maximum Voltage 600 V AC, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 36.5 mm, Overall Length 77 mm, Overall Width 6.2 mm

    graingerSKU: 796A17, mscSKU: , zoro_no: G405907314, mongo_id: 65bbe6823aaddbd5a903574e

Web Price
$4.56 / each
Qty

Product Details

connection accessory
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
0.2-4 mm², flexible without cable end || 0.2-6 mm², solid with cable end || 0.8-4 mm², flexible with cable end || 0.2-4 mm², solid without cable end
None
Gray
Special Enclosures
top
Push-In
2 x push-in downstream || 2 x push-in upstream
China
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
30 A
TRP
3.7 at 1 MHz
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
1000 V IEC 60243-1
V0 0.8 mm UL 94
Not Applicable
Not Applicable
Not Applicable
Not Applicable
10 AWG
24 AWG
36.5 mm
Gray
Polyamide 6/6
77 mm
32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A cURus
polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring
266 Degrees F
600 V AC
-40 Degrees F
clip-on
4 mm²
4
2
1
4
1
36.5 mm
77 mm
6.2 mm
1
LR || IEC-Ex || cURus || GL || CSA || EAC || ATEX
Spacial enclosures
Linergy TR
terminal block
Linergy
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Yes
ATEX, CSA, cULus, EAC, GL, IECEx, LR
12 mm
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
1
Pass-Through
connection without tool || disconnection flat screwdriver
V-0
6.2 mm
24 AWG - 10 AWG
12 mm
800 V EN/IEC 60947-7-1 || 600 V CSA || 600 V cURus
