Home / PUSH-IN TERMINAL

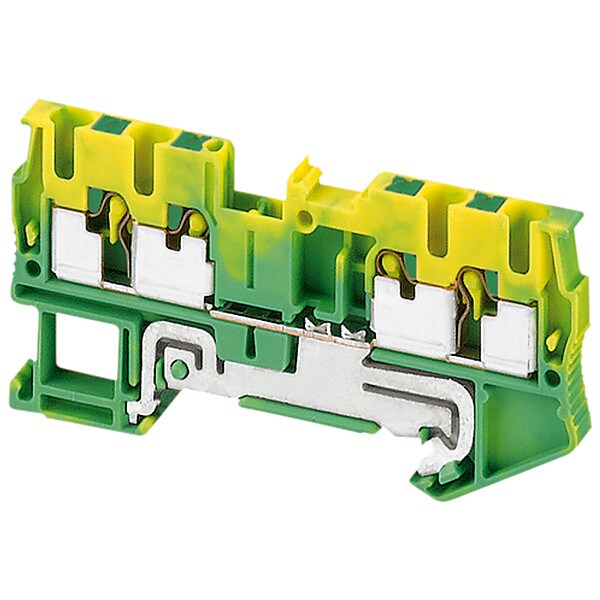

PUSH-IN TERMINAL

PUSH-IN TERMINAL

  • Square D
  • Push-In Terminal, Circuit Protection Type None, Connection Type Push-In, Current 20 A, For Minimum Wire Size 24 AWG, For Maximum Wire Size 12 AWG, Housing Color Green/Yellow, Maximum Voltage 600 V, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 36.5 mm, Overall Length 72 mm, Overall Width 5.2 mm

    graingerSKU: 796A14, mscSKU: , zoro_no: G505907207, mongo_id: 65bbe86b22d7a989a98f4263

Web Price
$9.99 / each
Qty
Minimum order: 50

Product Details

-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
0.08-4 mm², solid || 0.08-2.5 mm², flexible without cable end || 0-2.5 mm², flexible with cable end
None
green-yellow
Special Enclosures
top
Push-In
2 x push-in downstream || 2 x push-in upstream
China
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
20 A
TRP
3.7 at 1 MHz
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
1000 V IEC 60243-1
V0 0.8 mm UL 94
Not Applicable
Not Applicable
Not Applicable
Not Applicable
12 AWG
24 AWG
36.5 mm
Green/Yellow
Polyamide 6/6
72 mm
polyamide 6/6 insulating case
266 Degrees F
600 V
-40 Degrees F
clip-on
2.5 mm²
4
2
1
4
1
36.5 mm
72 mm
5.2 mm
1
IEC-Ex || VDE || cURus || EAC || GL || LR || CSA || ATEX
Spacial enclosures
Linergy TR
terminal block
Linergy
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Yes
ATEX, CSA, cULus, EAC, GL, IECEx, LR, VDE
10 mm
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
1
Grounding
disconnection flat screwdriver || connection without tool
V-0
5.2 mm
24 AWG - 12 AWG
10 mm
