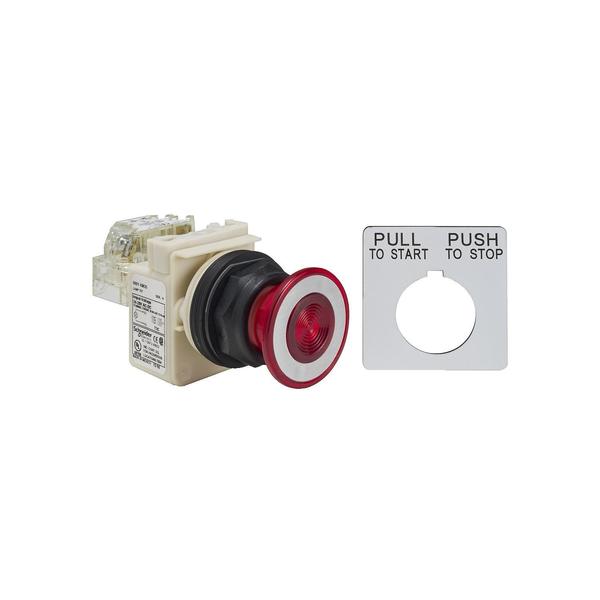

PUSHBUTTON 28V 30MM SK OPTIONS

SKU
Brand Square D
Categories
Description PUSHBUTTON 28V 30MM SK +OPTIONS

Web Price

$326.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material plastic

Bulb Base BA 9s

Cap/Operator Or Lens Colour red

Connections - Terminals screw clamp terminals, 1 x 0.22 to 2 x 1.5 mmÃÂ² IEC 60947-1

Contacts Material silver alloy contacts

Contacts Type And Composition 1 C/O

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name 9001SK

Electrical Shock Protection Class class II IEC 60536

Ip Degree Of Protection IP66 IEC 60529 || IP66 NF C 20-010

Light Block Supply full voltage, direct

Light Source incandescent, incandescent bulb

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Operating Position any position

Operator Additional Information screw-on plastic

Operator Position Information 2 positions

Operator Profile red mushroom ÃÂ 41 mm, mushroom ÃÂ 41 mm

Package Quantity 1

Product Or Component Type illuminated push-button

Protective Treatment TC

Rated Breaking Capacity 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head round

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse IEC 60947-5-1

Size 30 mm

Standards IEC 60947-1 || CSA C22.2 No 14 || JIS C 852 || UL 508 || IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-5-1

Tightening Torque 0.8-0.8 N.m IEC 60947-1

Type Of Operator push-pull

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1

[Us] Rated Supply Voltage 24 to 28 V AC/DC, 24 to 28 V
