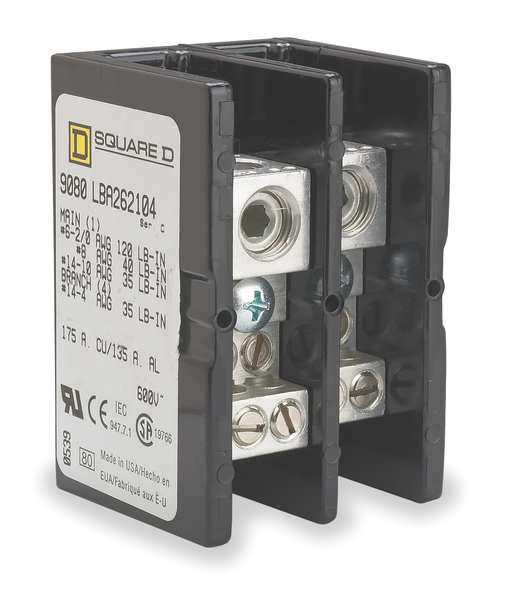

Pwr Dist Block, 175A, 2P, 4P Secndry, 600VAC

SKU
Brand Square D
Categories
Description Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2/0 AWG, Load Connections/Pole 4, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 175 A, Maximum Voltage 600 V AC/DC, Mounting Type Surface Mount, Number of Poles 2, Overall Depth 1.78 in, Overall Length 2.88 in, Overall Width 1.94 in
graingerSKU: 2DD51, mscSKU: , zoro_no: G0591884, mongo_id: 65bbe97422d7a989a99587b9

Web Price

$54.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 302ÃÂ°F (-40 to 150ÃÂ°C)

Amps Al conductor: 135 A; Cu Conductor: 175 A

Block Material Phenolic: block

Certifications CSA file 70361 class 6228 01; CE; UL recognized E60616 CCN XCFR2

Country of Origin (subject to change) United States

Current Rating 175 A copper; 135 A aluminium

Depth 1.78 in

Electrical Connection Tin plated Aluminium Lugs

End Barrier 9080LB22

Features Mercury Free

For Conductor Material Aluminum, Copper

For Line Aluminum Wire Size - Maximum 2/0 AWG

For Line Aluminum Wire Size - Minimum 14 AWG

For Line Copper Wire Size - Maximum 2/0 AWG

For Line Copper Wire Size - Minimum 14 AWG

For Load Aluminum Wire Size - Maximum 4 AWG

For Load Aluminum Wire Size - Minimum 14 AWG

For Load Copper Wire Size - Maximum 4 AWG

For Load Copper Wire Size - Minimum 14 AWG

Height 2.88 in (73.15 mm)

Housing Color Black

Housing Material Phenolic

Length 2.88 in

Length (Straight Wireway) 2.88 in

Line Connections/Pole 1

Line Side Connection Type Lug

Line Side Wire Size Range 14 AWG - 2/0 AWG

Load Connections/Pole 4

Load Side Connection Type Lug

Load Side Wire Range 14 AWG - 4 AWG

Material Phenolic

Max. Amps 175 A

Max. Operating Temp. 302ÃÂ°F

Maximum Current - Aluminum Conductor 135 A

Maximum Current - Copper Conductor 175 A

Maximum Operating Temperature 302 Degrees F

Maximum Voltage 600 V AC/DC

Min. Operating Temp. -40ÃÂ°F

Minimum Operating Temperature -40 Degrees F

Mounting Surface Mount

Number of Circuits 2

Number of Poles 2

Overall Depth 1.78 in

Overall Length 2.88 in

Overall Width 1.94 in

Package Quantity 1

Power Distribution Block Design Open

Primary Connections/Pole 1

Primary Wire Range 14 to 2/0 AWG

Primary Wire Range (AWG) 14 to 2/0 AWG

RoHS Compliant Yes

Secondary Connection/Pole 4

Secondary Wire Range 14 to 4 AWG

Secondary Wire Range (AWG) 14 to 4 AWG

Short Circuit Current Rating 65 kA

Special Features 18 Months Warranty, Surface Mount

Standards CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2

Terminal Material Aluminum

Terminal Tightening Torque Line lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium; Line lug 35 lbf.in (3.95 N.m) AWG 12 to AWG 10 copper or aluminium; Line lug 35 lbf.in (3.95 N.m) AWG 14 copper; Line lug 120 lbf.in (13.56 N.m) AWG 6 to AWG 2/0 copper or aluminium; Load lug 120 lbf.in (13.56 N.m) AWG 14 to AWG 4 copper

Terminals Per Pole 1 line; 4 load

Voltage Rating 600V AC

Width 1.94 in

Wire Size Line 4, AWG 14 to AWG 2/0, copper or aluminium; Load 2, AWG 14 to AWG 4, copper or aluminium

Wire Strip Length Line 0.5 in; Load 0.44 in top; Load 0.75 in bottom

Wire Stripping Length Line: 0.5 in (12.70 mm); Load: 0.44 in (11.18 mm) for top connection; Load: 0.75 in (19.05 mm) for bottom connection
