Home / Qo Ground Bar Kit, Amps: 225 A

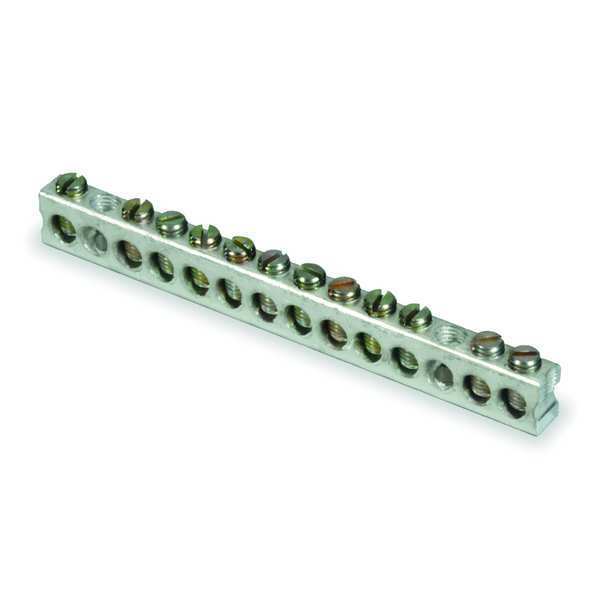

Qo Ground Bar Kit, Amps: 225 A

SKU
Brand Square D
Categories
Description Ground Bar Kit, 225 A Amps, Number of Terminals 12, Min. Wire Size 12 AWG (Al), 14 AWG (Cu), Max. Wire Size 4 AWG, For Use With Square D QO, HOM, NQOD and NF Panelboards, Includes (1) Grounding Lug Connector Assembly, (2) Screws, Material Aluminum
graingerSKU: 5B711, mscSKU: , zoro_no: G0368286, mongo_id: 65bbe65b3aaddbd5a9023e5a

Web Price

$15.97 / each

Qty

Product Details

Accessory Type Ground Bar Kit

Amps 225 A

Amps AC 100

Bar Length 4.69 in (119 mm)

Country of Origin (subject to change) United States

Depth 0.312 in

Features Mercury Free

For Use With Square D QO, HOM, NQOD and NF Panelboards

Height .437 in

Includes (1) Grounding Lug Connector Assembly, (2) Screws

Material Aluminum

Material of Construction Aluminum

Max. Wire Size 4 AWG

Maximum Length Of Segment 3.15 in (80 mm)

Min. Wire Size 12 AWG (Al), 14 AWG (Cu)

Mounting Style direct mounting back of enclosure

Number of Terminals 12

Package Quantity 1

Product Line QO

Product Type Bar

Provided Equipment 2 screw

Tightening Torque 30 lb.in; Mounting screw 30 lb.in; 20 lb.in, AWG 14 to AWG 10, copper; 20 lb.in, AWG 12 to AWG 10, aluminium; 35 lb.in, AWG 6 to AWG 4; 25 lb.in, AWG 8; 25 lb.in, AWG 14 to AWG 12, copper; 25 lb.in, AWG 12 to AWG 10, aluminium

Type Panelboard

Wire Size AWG 14 to AWG 4 copper; AWG 12 to AWG 4 aluminium
