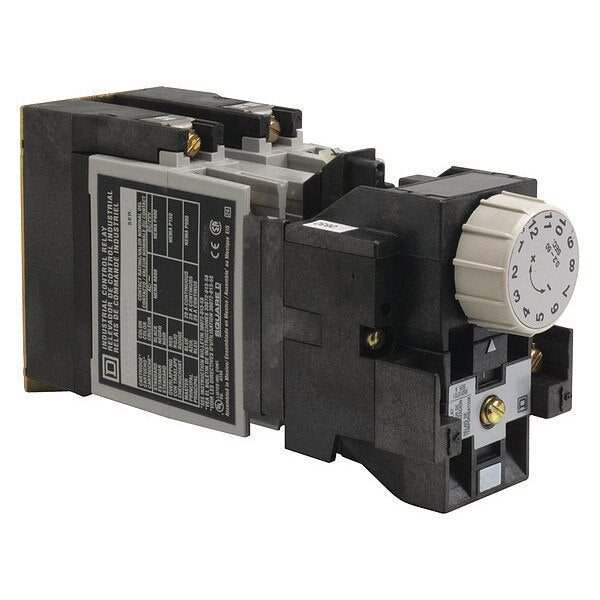

Relay 600Vac 10Amp Nema +Options

SKU
Brand Square D
Categories
Description Relay 600Vac 10Amp Nema +Options

Web Price

$736.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-160ÃÂ°F

Awg Gauge AWG 18...AWG 12 copper

Coil Volts 600VAC

Contacts Type And Composition 4 NO 4 standard contact cartridges

Control Circuit Voltage Limits operational 0.85...1.1 Uc AC 50/60 Hz

Country of Origin (subject to change) Mexico

Depth 6.55 in

Electrical Connection screw clamp terminals

Height 3.5 in

Hold-In Power Consumption In Va 23-23 VA 60 Hz || 25-25 VA 50 Hz

Inrush Power In Va 148-148 VA 60 Hz || 143-143 VA 50 Hz

Line Rated Current 10 A AC || 5 A DC

Maximum Switching Voltage 600 V AC

Mounting Support panel

Operating Time 15 ms - pick-up || 16 ms - drop-out

Package Quantity 1

Poles Description 4P

Product Certifications CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR

Product Or Component Type relay

Rated Breaking Capacity 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508

Relay Type timing

Tightening Torque control circuit 1.02-1.36 N.m screw terminal

Time Delay Range 0.2...60 s

Time Delay Type on-delay

Width 2.23 in

[Icm] Rated Short-Circuit Making Capacity 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508

[Uc] Control Circuit Voltage 110 V AC 50 Hz || 120 V AC 60 Hz
