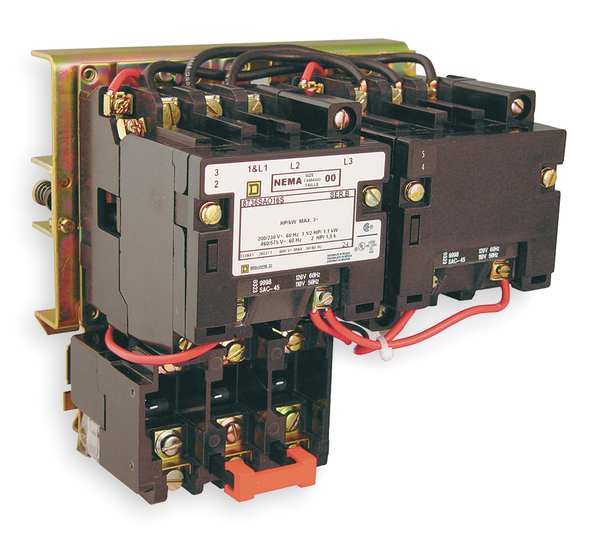

Home / Reversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 120V AC, 3 Poles, 1NO

Reversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 120V AC, 3 Poles, 1NO

SKU
Brand Square D
Categories
Description NEMA Magnetic Motor Starter, Includes Auxiliary Contacts No, Maximum Overload Relay Current Setting 45 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 15 A, Trip Class 10/20, Number of Poles 3, Number of Auxillary Contacts 0, Phase Three, Operator None, Operator Function Not Applicable, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110/120V AC, Horsepower @ Three Phase - 600V AC 25 hp
graingerSKU: 5F331, mscSKU: , zoro_no: G1416037, mongo_id: 65bbe7ca9a749db82275982d

Web Price

$2,489.99 / each

Qty

Product Details

Action Reversing

Amps AC 45

Auxiliary Contact Form 1NO

Auxiliary Contacts Without

Certifications UL Listed; CSA

Coil Voltage 110/120V AC

Coil Volts 120V AC

Control Circuit Type Separate control circuit

Control Units No control units

Country of Origin (subject to change) Mexico

Current AC 45 A

Depth 6.03 in

Enclosure NEMA Rating No Enclosure

Enclosure Type Open

Features Solid State Overload Relay

Frequency 50/60 Hz

Height 8.5 in

Horsepower @ Three Phase - 208V AC 10 hp

Horsepower @ Three Phase - 240V AC 15 hp

Horsepower @ Three Phase - 480V AC 25 hp

Horsepower @ Three Phase - 600V AC 25 hp

Horsepower Rating 10 HP 200 V AC; 15 HP 230 V AC; 25 HP 460 V AC; 25 HP 575 V AC

HP @ 3 Phase - 208V 10 hp

HP @ 3 Phase - 240V 15 hp

HP @ 3 Phase - 480V 25 hp

HP @ 3 Phase - 575V 25 hp

Hz_ 50/60

Includes Solid state overload relay

Includes Auxiliary Contacts No

Includes Pilot Light No

Maximum Overload Relay Current Setting 45 A

Maximum Voltage Rating 600V AC

Minimum Overload Relay Current Setting 15 A

Mounting Orientation Horizontal

NEMA Enclosure Rating No Enclosure

NEMA Size 2

Number of Auxillary Contacts 0

Number of Poles 3

Operating Voltage 600V AC

Operator None

Operator Function Not Applicable

Overall Depth 6.03 in

Overall Height 8.5 in

Overall Width 9 in

Overload Protection Type Electronic

Overload Relay Amp Setting 15 to 45A

Package Quantity 1

Phase Three

Pilot Light Without pilot light

Product Type Starter

Reversing Capability Reversing

Short Circuit Current Rating Circuit-breaker 100 A maximum: 100 kA at 480 V AC; Fuse J 100 A maximum: 100 kA at 600 V AC; Fuse T 100 A maximum: 100 kA at 600 V AC; Fuse RK1 100 A maximum: 100 kA at 600 V AC; Fuse RK5 100 A maximum: 100 kA at 600 V AC

Standards CSA, UL Listed

Starter Style NEMA

Starter Type NEMA Style

Terminal Connection Type Screw Clamp Terminals

Thermal Unit Code Not Applicable

Trip Class 10/20

Type Of Overload Solid state Motor Logic class 10/20

Width 9 in

Wiring Mode 3 wires
