Home / SCREW TERMINAL, 30 A

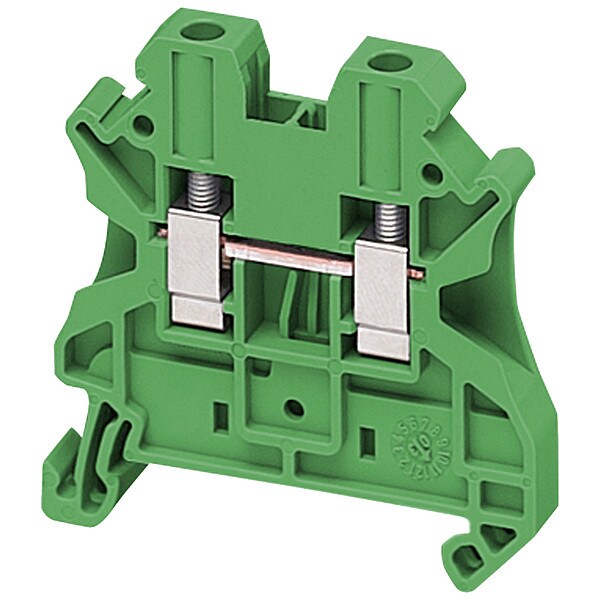

SCREW TERMINAL, 30 A

SCREW TERMINAL, 30 A

  • Square D
  • Screw Terminal, Circuit Protection Type None, Connection Type Screw Clamp, Current 30 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 10 AWG, Housing Color Green, Maximum Voltage 600 V AC, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 47.5 mm, Overall Length 47.7 mm, Overall Width 6.2 mm

    graingerSKU: 796A23, mscSKU: 69680130, zoro_no: G305907223, mongo_id: 65bbe86b9a749db8227903a0

Web Price
$2.44 / each
Qty
Minimum order: 50

Product Details

connection accessory
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
0.14-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end || 0.2-6 mm², solid without cable end || 0.2-6 mm², flexible without cable end
None
Green
Special Enclosures
sideways
Screw Clamp
1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)
China
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
30 A
TRV
3.7 at 1 MHz
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
1000 V IEC 60243-1
V0 0.8 mm UL 94
Not Applicable
Not Applicable
Not Applicable
Not Applicable
10 AWG
26 AWG
47.5 mm
Green
Polyamide 6/6
47.7 mm
32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A ATEX Exe II Ex II 2 GD || 30-30 A cURus
polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring
266 Degrees F
600 V AC
-40 Degrees F
clip-on
4 mm²
2
2
1
2
1
47.5 mm
47.7 mm
6.2 mm
1
DNV || CSA || cURus || EAC || IEC-Ex || VDE || ATEX || LR || GL
Spacial enclosures
Linergy TR
terminal block
Linergy
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Yes
ATEX, CSA, cULus, DNV, EAC, GL, IECEx, LR, VDE
9 mm
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
1
Pass-Through
0.6-0.8 N.m
connection screwdriver || disconnection screwdriver
1 N-m
V-0
6.2 mm
26 AWG - 10 AWG
9 mm
1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
