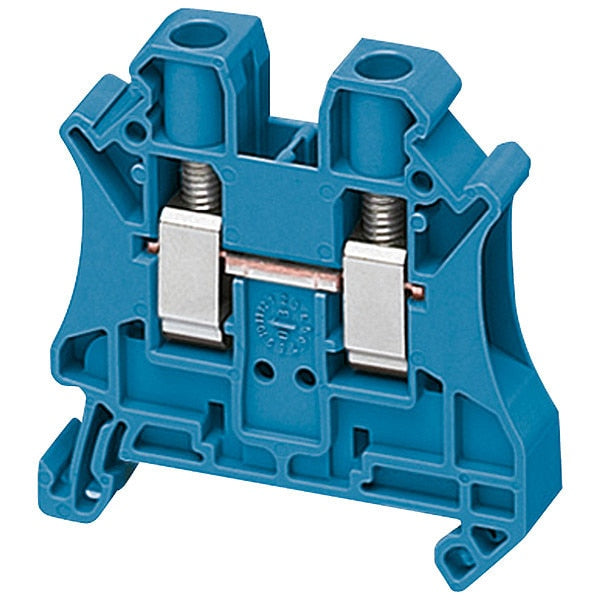

SCREW TERMINAL, 50 A

SCREW TERMINAL, 50 A

  • Square D
  • Screw Terminal, Circuit Protection Type None, Connection Type Screw Clamp, Current 50 A, For Minimum Wire Size 24 AWG, For Maximum Wire Size 8 AWG, Housing Color Blue, Maximum Voltage 600 V AC, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 47.5 mm, Overall Length 47.7 mm, Overall Width 8.2 mm

    graingerSKU: 796A29, mscSKU: , zoro_no: G305907353, mongo_id: 65bbe7553aaddbd5a908b67b

Web Price
$3.11 / each
Qty
Minimum order: 50

Product Details

connection accessory
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
0.2-10 mm², solid with cable end || 0.2-6 mm², flexible with cable end || 0.2-10 mm², solid without cable end || 0.2-10 mm², flexible without cable end
None
Blue
Special Enclosures
sideways
Screw Clamp
1 x screw terminal upstream M4) || 1 x screw terminal downstream M4)
Germany
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
50 A
TRV
3.7 at 1 MHz
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
1000 V IEC 60243-1
V0 0.8 mm UL 94
Not Applicable
Not Applicable
Not Applicable
Not Applicable
8 AWG
24 AWG
47.5 mm
Blue
Polyamide 6/6
47.7 mm
41-41 A EN/IEC 60947-7-1 || 50-50 A cURus || 50-50 A CSA || 40-40 A ATEX Exe II Ex II 2 GD
polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring
266 Degrees F
600 V AC
-40 Degrees F
clip-on
6 mm²
2
2
1
2
1
47.5 mm
47.7 mm
8.2 mm
1
VDE || EAC || GL || IEC-Ex || LR || DNV || CSA || ATEX || cURus
Spacial enclosures
Linergy TR
terminal block
Linergy
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Yes
ATEX, CSA, cULus, DNV, EAC, GL, IECEx, LR, VDE
10 mm
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
1
Pass-Through
1.5-1.8 N.m
connection screwdriver || disconnection screwdriver
2 N-m
V-0
8.2 mm
24 AWG - 8 AWG
10 mm
1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
