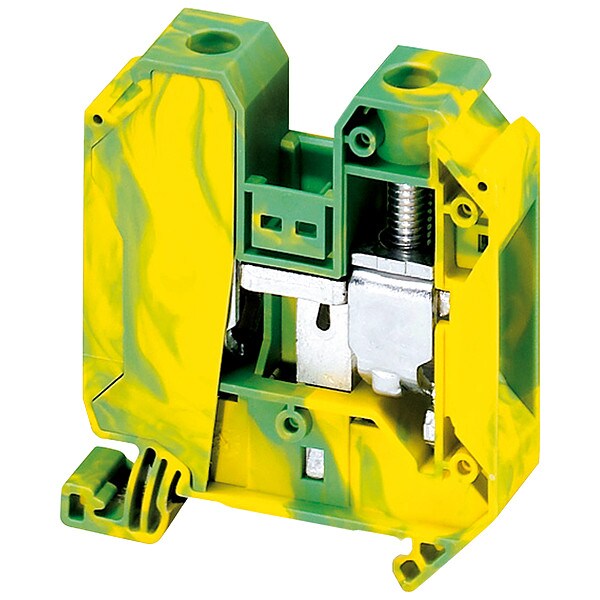

SCREW TERMINAL

SKU
Brand Square D
Categories
Description Screw Terminal, Circuit Protection Type None, Connection Type Screw Clamp, Current 150 A, For Minimum Wire Size 14 AWG, For Maximum Wire Size 1/0 AWG, Housing Color Green/Yellow, Maximum Voltage 600 V, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 60.2 mm, Overall Length 65.7 mm, Overall Width 16 mm
graingerSKU: 796A20, mscSKU: , zoro_no: G305907254, mongo_id: 65bbe8979a749db82279ead7

Web Price

$16.06 / each

Qty

Minimum order: 50

Product Details

Ambient Air Temperature For Operation -40-130ÃÂ°C IEC 60216-1 || -40-130ÃÂ°C VDE 0304-T21

Cable Cross Section 1.5-50 mmÃÂ², solid || 2.5-35 mmÃÂ², flexible with cable end || 1.5-50 mmÃÂ², flexible without cable end

Circuit Protection Type None

Color green-yellow

Compatible with Product Type Special Enclosures

Connection Position sideways

Connection Type Screw Clamp

Connections - Terminals 1 x screw terminal upstream || 1 x screw terminal downstream

Country of Origin (subject to change) Turkey

Creep Resistance 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Current 150 A

Device Short Name TRV

Dielectric Constant 3.7 at 1 MHz

Dielectric Loss 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Dielectric Strength 1000 V IEC 60243-1

Flame Retardance V0 0.8 mm UL 94

For Conductor Material Not Applicable

For Conductor Type Not Applicable

For Fuse Diameter Not Applicable

For Fuse Length Not Applicable

For Maximum Wire Size 1/0 AWG

For Minimum Wire Size 14 AWG

Height 60.2 mm

Housing Color Green/Yellow

Housing Material Polyamide 6/6

Length 65.7 mm

Line Rated Current 125-125 A EN/IEC 60947-7-1

Material polyamide 6/6 insulating case

Maximum Operating Temperature 266 Degrees F

Maximum Voltage 600 V

Minimum Operating Temperature -40 Degrees F

Mounting Mode clip-on

Nominal Cross Section 35 mmÃÂ²

Number of Connections 2

Number Of Measurement Input 2

Number of Poles 1

Number Of Terminals 2

Number of Tiers 1

Overall Depth 60.2 mm

Overall Length 65.7 mm

Overall Width 16 mm

Package Quantity 1

Product Certifications VDE || EAC || CSA || cURus || IEC-Ex || GL || ATEX

Product Compatibility Spacial enclosures

Product Name Linergy TR

Product Or Component Type terminal block

Range Linergy

Range Compatibility Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Resistivity 10000 MÃ¢ÂÂ¦.m IEC 60093 || 10000 MÃ¢ÂÂ¦.m VDE 0303-T30

RoHS Compliant Yes

Special Features It is Compliant with Green Premium (RoHS/REACH), Linergy TR is Terminal Block for Linergy, Multi Standards Certified (VDE/LR/CURUS/IEC-EX/ATEX/EAC/GL/CSA)

Standards ATEX, CSA, cULus, EAC, GL, IECEx, VDE

Strip Length 18 mm

Surface Resistance 1000 GÃ¢ÂÂ¦ IEC 60093 || 1000 GÃ¢ÂÂ¦ VDE 0303-T30

Terminal Block Level 1

Terminal Block Type Grounding

Tightening Torque 3.2-3.7 N.m

Tool Type connection screwdriver || disconnection screwdriver

Torque 4 N-m

UL 94 Flammability Rating V-0

Width 16 mm

Wire Size Ranges 14 AWG - 1/0 AWG

Wire Stripping Length 18 mm
