Home / SCREW TERMINAL

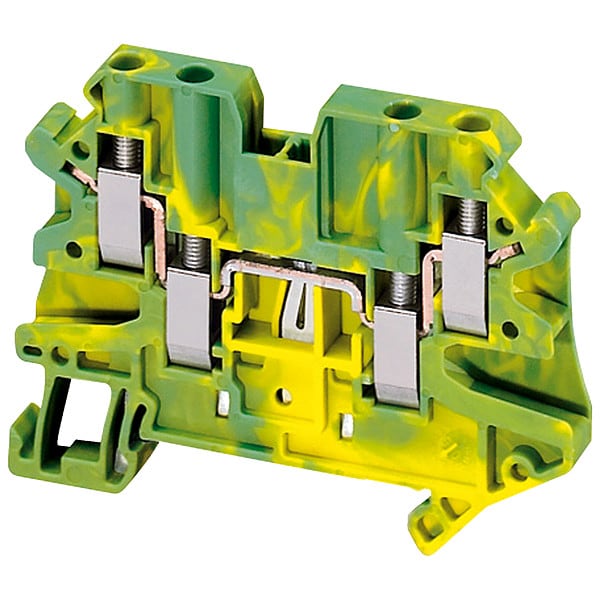

SCREW TERMINAL

SCREW TERMINAL

  • Square D
  • Screw Terminal, Circuit Protection Type None, Connection Type Screw Clamp, Current 20 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 12 AWG, Housing Color Green/Yellow, Maximum Voltage 150 V, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 47.5 mm, Overall Length 65.4 mm, Overall Width 6.2 mm

    graingerSKU: 796A28, mscSKU: , zoro_no: G905907197, mongo_id: 65bbe6e93aaddbd5a90607e0

Web Price
$18.56 / each
Qty
Minimum order: 50

Product Details

-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
0.14-6 mm², solid || 0.2-4 mm², flexible with cable end || 0.14-6 mm², flexible without cable end
None
green-yellow
Special Enclosures
sideways
Screw Clamp
2 x screw terminal downstream || 2 x screw terminal upstream
Germany
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
20 A
TRV
3.7 at 1 MHz
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
1000 V IEC 60243-1
V0 0.8 mm UL 94
Not Applicable
Not Applicable
Not Applicable
Not Applicable
12 AWG
26 AWG
47.5 mm
Green/Yellow
Polyamide 6/6
65.4 mm
polyamide 6/6 insulating case
266 Degrees F
150 V
-40 Degrees F
clip-on
4 mm²
4
2
1
4
1
47.5 mm
65.4 mm
6.2 mm
1
DNV || GL || ATEX || cURus || CSA || LR || EAC || IEC-Ex
Spacial enclosures
Linergy TR
terminal block
Linergy
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Yes
ATEX, CSA, cULus, DNV, EAC, GL, IECEx, LR
9 mm
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
1
Grounding
0.6-0.8 N.m
connection screwdriver || disconnection screwdriver
1 N-m
V-0
6.2 mm
26 AWG - 12 AWG
9 mm
