Home / Severe Duty Limit Switch, No Lever, Rotary, SPDT, 20A @ 600V AC

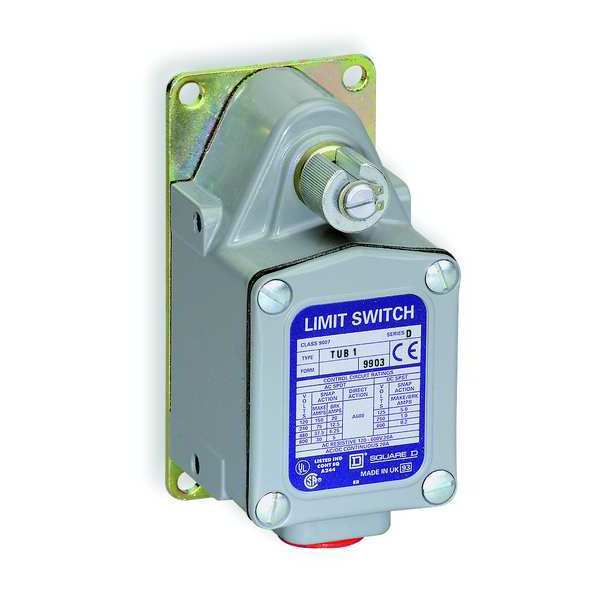

Severe Duty Limit Switch, No Lever, Rotary, SPDT, 20A @ 600V AC

Severe Duty Limit Switch, No Lever, Rotary, SPDT, 20A @ 600V AC

  • Square D
  • Severe Duty Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 20A @ 600V, DC Contact Rating - Limit Switch 20A @ 600V, Contact Form- Switches SPDT, Body Height - Limit Switch 4.66 in, Body Width - Limit Switch 2.25 in, Body Depth - Limit Switch 2.44 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, Mounting - Limit Switch Surface

    graingerSKU: 5B054, mscSKU: , zoro_no: G1007151, mongo_id: 65bbea5822d7a989a99aa727

Web Price
$552.49 / each
Qty

Product Details

20A @ 600V
20A @ 600V
CW and CCW || from left or right
Side
Side
Side
Rotary Head, No Lever
Rotary, No Lever
No Lever, Rotary
20
Rotary
Rotary
2.44 in
4.66 in
Zinc
Standard
Standard
2.25 in
No
No
snap action
SPDT
SPDT
SPDT
silver flashed copper
Mexico
20A @ 600V
20A @ 600V
2.44
Screw Terminals
rotary head
4.66
67
Severe Duty Limit Switch
130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
Surface
(4) 0.26 in dia
4 Hole Rectangular
4.22 in x 1.81 in
CCW, CW
1, 12, 13, 2, 4
1
12.0 in-lb
-10 Degrees to 185 Degrees F
1
9007TU
30 gn 9 ms IEC 60068-2-27
20 A Bussmann class CC KTK-R-21 fuse non-time delay
lateral approach
CE, CSA, UL
No Stem
Total Travel 81 Degrees
spring return without operating lever
10 gn 10-55 Hz)IEC 60068-2-6
600VAC/DC
2.5 lb(US)
2.25
1/2 in NPT
