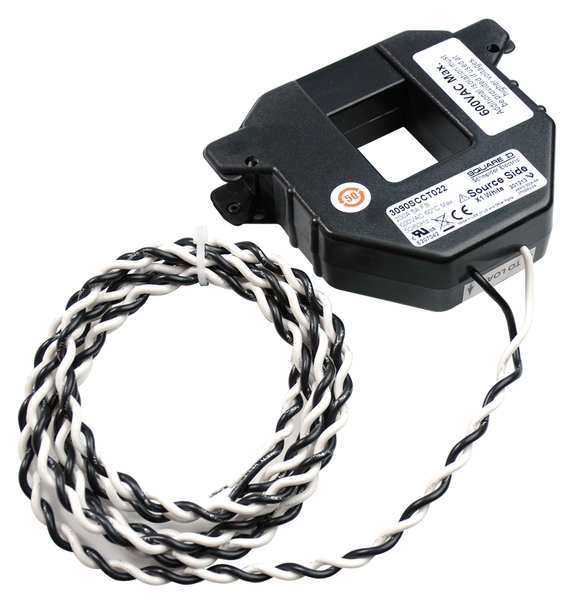

Split Core Current Transformer, 1600 Amp

SKU
Brand Square D
Categories
Description Split Core Current Transformer, Primary Range 0 to 1600A, Secondary Range 0 to 5A, Hole Height 5.5 in, Hole Width 2.45 in, Electrical Connection - Current Transformer 6 ft 18 AWG Leads, Window Rectangular, Overall Height 7.88 in, Overall Width 5.92 in, Overall Depth 2.45 in
graingerSKU: 38M515, mscSKU: , zoro_no: G5216093, mongo_id: 65bbe7c23aaddbd5a90b3436

Web Price

$398.74 / each

Qty

Product Details

Accessory / Separate Part Category measurement accessory

Ambient Air Temperature For Operation -15-60-C

Ambient Air Temperature For Storage -40-70-C

Country of Origin (subject to change) United States

Current Transformer Ratio 1600/5

Current Transformer Type split core

Depth 29 mm

Electrical Connection 1.8 m AWG 18 flying leads

Electrical Connection - Current Transformer 6 ft 18 AWG Leads

For Use With Power Meters

Height internal 140 mm || external 207 mm

Hole Height 5.5 in

Hole Width 2.45 in

Insulation basic insulation 600 V AC || reinforced insulation 300 V AC

Item - Transformer Split Core Current Transformer

Measurement Accuracy 1 % full scale

Mounting Location indoor use only

Network Frequency 50/60 Hz

Network Type AC

Operating Altitude <= 9842.52 ft (3000 m)

Overall Depth 2.45 in

Overall Height 7.88 in

Overall Width 5.92 in

Package Quantity 1

Pollution Degree 2

Primary Operational Current 1600 A

Primary Range 0 to 1600A

Product Or Component Type current transformer

Range PowerLogic

Range Compatibility PowerLogic (PowerLogic PM3000) power meter || PowerLogic (PowerLogic PM5000) power meter || PowerLogic (PowerLogic PM8000) power meter || PowerLogic (PowerLogic ION7400) power meter || PowerLogic CM4000T circuit monitor || Acti 9 (Acti9 iEM3000) energy meter

Relative Humidity 0-95 % non-condensing

Secondary Current 0.208333333333333

Secondary Power 45 VA

Secondary Range 0 to 5A

Standards UL 1015 || IEC 61010-1 || UL 61010-1

Width internal 62 mm || external 150 mm

Window Rectangular
