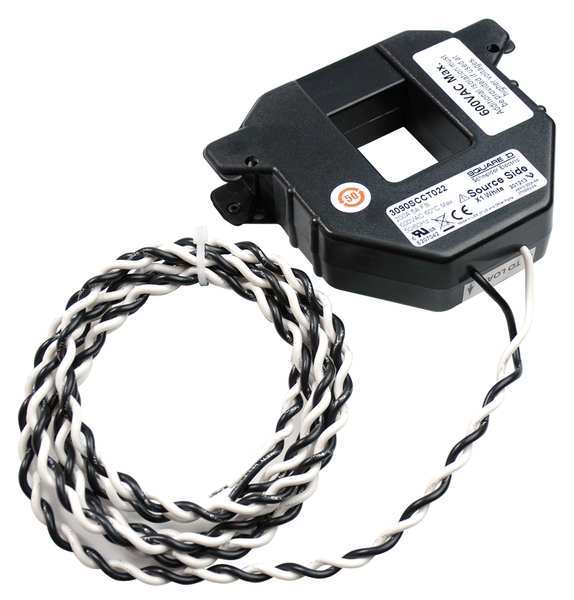

Split Core Current Transformer, 300 Amp

SKU
Brand Square D
Categories
Description Split Core Current Transformer, Primary Range 0 to 300A, Secondary Range 0 to 5A, Hole Height 1.51 in, Hole Width 1.25 in, Electrical Connection - Current Transformer 6 ft 18 AWG Leads, Window Rectangular, Overall Height 3.91 in, Overall Width 4.75 in, Overall Depth 1.25 in
graingerSKU: 38M509, mscSKU: , zoro_no: G5216041, mongo_id: 65bbe83b9a749db82277eacb

Web Price

$182.49 / each

Qty

Product Details

Accessory / Separate Part Category measurement accessory

Ambient Air Temperature For Operation -15-60-C

Ambient Air Temperature For Storage -40-70-C

Country of Origin (subject to change) United States

Current Transformer Ratio 300/5

Current Transformer Type split core

Depth 29 mm

Electrical Connection 1.8 m AWG 18 flying leads

Electrical Connection - Current Transformer 6 ft 18 AWG Leads

For Use With Power Meters

Height internal 38 mm || external 107 mm

Hole Height 1.51 in

Hole Width 1.25 in

Insulation basic insulation 600 V AC || reinforced insulation 300 V AC

Item - Transformer Split Core Current Transformer

Measurement Accuracy 1 % full scale

Mounting Location indoor use only

Network Frequency 50/60 Hz

Network Type AC

Operating Altitude <= 9842.52 ft (3000 m)

Overall Depth 1.25 in

Overall Height 3.91 in

Overall Width 4.75 in

Package Quantity 1

Pollution Degree 2

Primary Operational Current 300 A

Primary Range 0 to 300A

Product Or Component Type current transformer

Range PowerLogic

Range Compatibility PowerLogic (PowerLogic PM3000) power meter || PowerLogic (PowerLogic PM5000) power meter || PowerLogic (PowerLogic PM8000) power meter || PowerLogic (PowerLogic ION7400) power meter || PowerLogic CM4000T circuit monitor || Acti 9 (Acti9 iEM3000) energy meter

Relative Humidity 0-95 % non-condensing

Secondary Current 0.208333333333333

Secondary Power 2.5 VA

Secondary Range 0 to 5A

Standards UL 1015 || IEC 61010-1 || UL 61010-1

Width internal 32 mm || external 121 mm

Window Rectangular
