Home / SPRING TERMINAL, 16 A

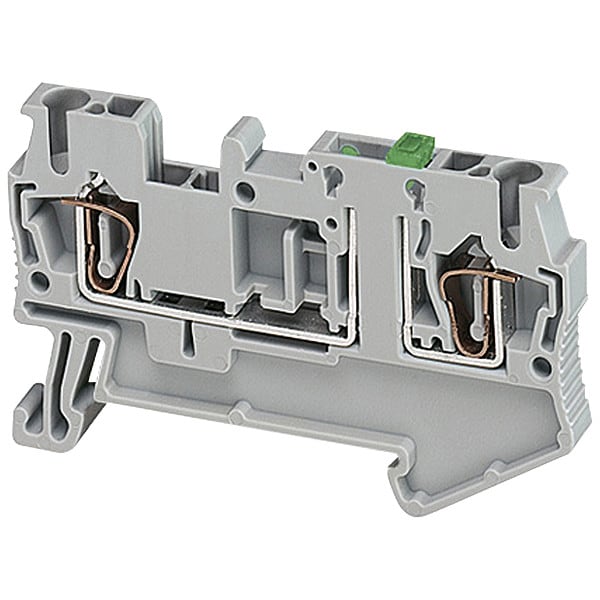

SPRING TERMINAL, 16 A

SPRING TERMINAL, 16 A

  • Square D
  • Spring Terminal, Circuit Protection Type None, Connection Type Spring, Current 16 A, For Minimum Wire Size 28 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 600 V AC, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 36.5 mm, Overall Length 60.5 mm, Overall Width 5.2 mm, Standards CSA, cULus, EAC

    graingerSKU: 796A34, mscSKU: , zoro_no: G505907252, mongo_id: 65bbe8479a749db822781dc7

Web Price
$9.36 / each
Qty

Product Details

-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
0.08-2.5 mm², flexible without cable end || 0.8-4 mm², solid
None
Gray
Special Enclosures
top
Spring
1 x spring terminal upstream || 1 x spring terminal downstream
Germany
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
16 A
TRR
3.7 at 1 MHz
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
1000 V IEC 60243-1
V0 0.8 mm UL 94
Not Applicable
Not Applicable
Not Applicable
Not Applicable
12 AWG
28 AWG
36.5 mm
Gray
Polyamide 6/6
60.5 mm
20-20 A EN/IEC 60947-7-1 || 16-16 A CSA || 16-16 A cURus
polyamide 6/6 insulating case
266 Degrees F
600 V AC
-40 Degrees F
clip-on
2.5 mm²
2
2
1
2
1
36.5 mm
60.5 mm
5.2 mm
1
CSA || EAC || cURus
Spacial enclosures
Linergy TR
terminal block
Linergy
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Yes
CSA, cULus, EAC
10 mm
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
1
Blade Disconnect
disconnection flat screwdriver || connection flat screwdriver
V-0
5.2 mm
28 AWG - 12 AWG
10 mm
300 V CSA || 400 V EN/IEC 60947-7-1 || 600 V cURus
