Home / SPRING TERMINAL, 20 A

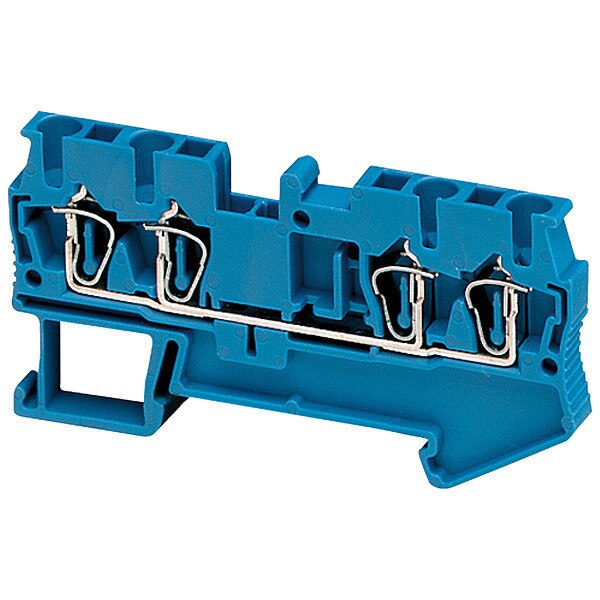

SPRING TERMINAL, 20 A

SPRING TERMINAL, 20 A

  • Square D
  • Spring Terminal, Circuit Protection Type None, Connection Type Spring, Current 20 A, For Minimum Wire Size 28 AWG, For Maximum Wire Size 12 AWG, Housing Color Blue, Maximum Voltage 600 V AC, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 36.5 mm, Overall Length 72 mm, Overall Width 5.2 mm

    graingerSKU: 796A38, mscSKU: , zoro_no: G005907202, mongo_id: 65bbe7c49a749db822756d5d

Web Price
$3.06 / each
Qty
Minimum order: 50

Product Details

connection accessory
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
0.08-2.5 mm², flexible without cable end || 0.08-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.08-4 mm², solid without cable end
None
Blue
Special Enclosures
top
Spring
2 x spring terminal downstream || 2 x spring terminal upstream
Germany
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
20 A
TRR
3.7 at 1 MHz
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
1000 V IEC 60243-1
V0 0.8 mm UL 94
Not Applicable
Not Applicable
Not Applicable
Not Applicable
12 AWG
28 AWG
36.5 mm
Blue
Polyamide 6/6
72 mm
20-20 A CSA || 20-20 A cURus || 24-24 A EN/IEC 60947-7-1
polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring
266 Degrees F
600 V AC
-40 Degrees F
clip-on
2.5 mm²
4
2
1
4
1
36.5 mm
72 mm
5.2 mm
1
VDE || CSA || DNV || IEC-Ex || cURus || GL || ATEX || EAC || LR
Spacial enclosures
Linergy TR
terminal block
Linergy
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
600 V CSA; 800 V EN/IEC 60947-7-1; 600 V cURus
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Yes
ATEX, CSA, cULus, DNV, EAC, GL, IECEx, LR, VDE
10 mm
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
1
Pass-Through
connection flat screwdriver || disconnection flat screwdriver
V-0
5.2 mm
28 AWG - 12 AWG
10 mm
600 V CSA || 800 V EN/IEC 60947-7-1 || 600 V cURus
