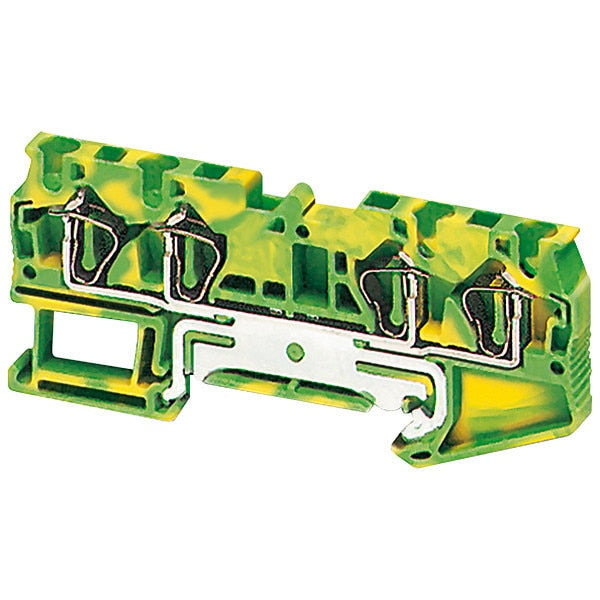

SPRING TERMINAL

SPRING TERMINAL

  • Square D
  • Spring Terminal, Circuit Protection Type None, Connection Type Spring, Current 30 A, For Minimum Wire Size 28 AWG, For Maximum Wire Size 10 AWG, Housing Color Green/Yellow, Maximum Voltage 600 V, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 36.5 mm, Overall Length 87 mm, Overall Width 6.2 mm

    graingerSKU: 796A49, mscSKU: , zoro_no: G405907130, mongo_id: 65bbe5b43aaddbd5a9fdf427

Web Price
$13.49 / each
Qty

Product Details

-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
0.08-4 mm², solid || 0.2-4 mm², flexible with cable end || 0.08-4 mm², flexible without cable end
None
green-yellow
Special Enclosures
top
Spring
2 x spring terminal downstream || 2 x spring terminal upstream
Germany
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
30 A
TRR
3.7 at 1 MHz
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
1000 V IEC 60243-1
V0 0.8 mm UL 94
Not Applicable
Not Applicable
Not Applicable
Not Applicable
10 AWG
28 AWG
36.5 mm
Green/Yellow
Polyamide 6/6
87 mm
polyamide 6/6 insulating case
266 Degrees F
600 V
-40 Degrees F
clip-on
4 mm²
4
2
1
4
1
36.5 mm
87 mm
6.2 mm
1
cURus || LR || IEC-Ex || EAC || ATEX || GL || CSA || VDE || DNV
Spacial enclosures
Linergy TR
terminal block
Linergy
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Yes
ATEX, CSA, cULus, DNV, EAC, GL, IECEx, LR, VDE
10 mm
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
1
Grounding
connection flat screwdriver || disconnection flat screwdriver
V-0
6.2 mm
28 AWG - 10 AWG
10 mm
