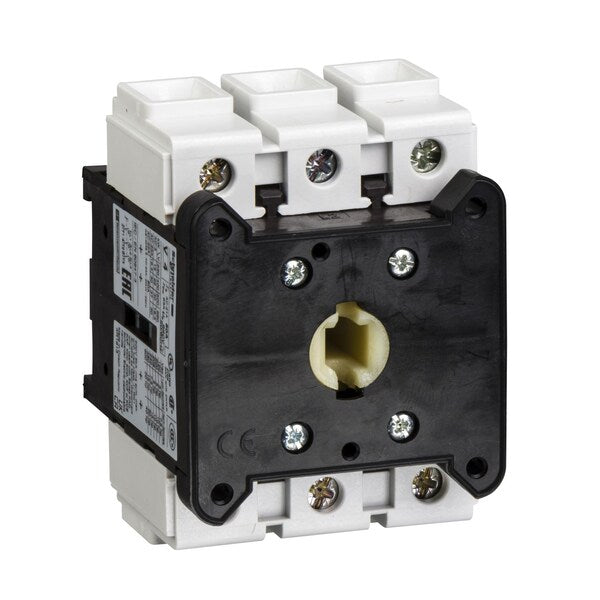

Switch Body

SKU
Brand Square D
Categories
Description Switch Body
graingerSKU: 48P684, mscSKU: , zoro_no: G0654328, mongo_id: 65bbe88b22d7a989a98fe3b0

Web Price

$509.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C

Breaking Capacity 1400 A 400 V AC-21A) || 1400 A 400 V AC-22A) || 1400 A 400 V AC-23A)

Connections - Terminals power circuit screw clamp terminals 70-70 mmÃÂ² flexible - with cable end || power circuit screw clamp terminals 95-95 mmÃÂ² solid

Contacts Type And Composition 3 NO

Country of Origin (subject to change) Czechia

Depth 90 mm

Device Short Name V

Electrical Durability 30000 cycles AC-21 || 30000 cycles DC-1 to 5

Fire Resistance 960ÃÂ°C IEC 60695-2-1

Height 125 mm

Intermittent Duty Class 30

Ip Degree Of Protection IP20 conforming to IEC 60529

Making Capacity 1750 A 400 V AC-22A || 1750 A 400 V AC-23A || 1600 A 400 V AC-21A

Mechanical Durability 30000 cycles

Mechanical Robustness vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Mounting Support symmetrical rail || plate

Network Frequency 50/60 Hz

Network Type AC || DC

Package Quantity 1

Performance Level high performance

Poles Description 3P

Product Certifications UL || CSA || GL || UKCA

Product Name TeSys VARIO

Product Or Component Type switch body

Protective Treatment TC

Range TeSys

Rated Conditional Short-Circuit Current 10 kA 400 V 200 A aM || 10 kA 400 V 200 A gG

Rated Operational Power In W 30 kW 230 to 240 V AC-3) || 37 kW 400 to 415 V AC-3) || 37 kW 690 V AC-3) || 45 kW 500 V AC-3) || 45 kW 690 V AC-23A) || 55 kW 500 V AC-23A) || 30 kW 230 to 240 V AC-23A) || 45 kW 400 to 415 V AC-23A)

Standards IEC 60947-3

Suitability For Isolation yes

Tightening Torque power circuit 22.6-22.6 N.m screw clamp terminals

Width 90 mm

[Icm] Rated Short-Circuit Making Capacity 2.8 kA 400 V at Ipeak

[Icw] Rated Short-Time Withstand Current 2100 A 400 V 1 s

[Ie] Rated Operational Current 83 A AC-23 Ue: 400 V

[Ithe] Conventional Enclosed Thermal Current 140 A

[Ith] Conventional Free Air Thermal Current 175 A

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage 8 kV
