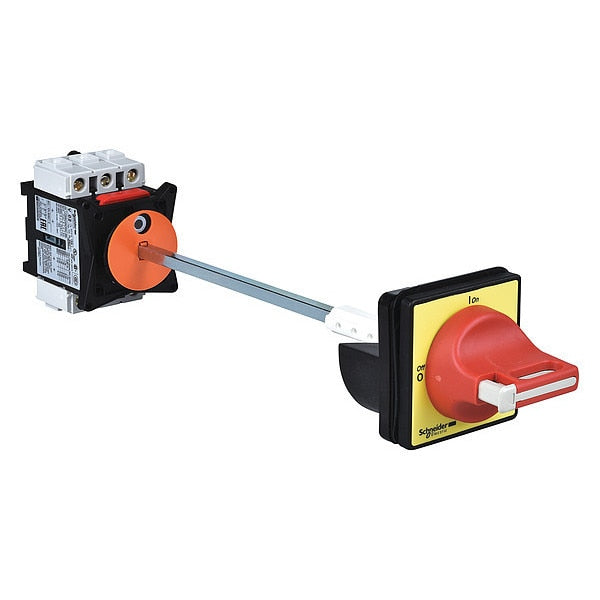

Switch Kit/20 Ampere

SKU
Brand Square D
Categories
Description Switch Kit, Product Type Switch Kit/20 Ampere
graingerSKU: 48P676, mscSKU: , zoro_no: G0852717, mongo_id: 65bbe7c49a749db822756bab

Web Price

$246.24 / each

Qty

Minimum order: 2

Product Details

Accessory Type Switch Kit/20 Ampere

Ambient Air Temperature For Operation -20-50ÃÂ°C

Base Dimension 60 x 60 mm

Breaking Capacity 250 A 400 V AC-21A) || 250 A 400 V AC-22A) || 250 A 400 V AC-23A)

Compatibility Code main switch disconnector

Connections - Terminals power circuit screw clamp terminals 10-10 mmÃÂ² solid || power circuit screw clamp terminals 6-6 mmÃÂ² flexible - with cable end

Contacts Type And Composition 3 NO

Control Type rotary handle

Country of Origin (subject to change) Czechia

Degree Of Protection IP20 conforming to IEC 60529; IP65

Device Composition switch || shaft extension || handle

Device Short Name VCCD

Electrical Durability 100000 cycles AC-21 || 30000 cycles DC-1 to 5

Fire Resistance 960ÃÂ°C IEC 60695-2-1

Fixing Mode hole 22.5 mm handle || by clips switch || by screws switch

Handle Colour red

Handle Front Plate Colour yellow

Height 74 mm

Iec Rated Operational Power in W 11 kW 500 V AC-23A); 15 kW 690 V AC-23A); 7.5 kW 500 V AC-3); 7.5 kW 690 V AC-3); 1.5 kW 230 to 240 V AC-3); 5.5 kW 230 to 240 V AC-23A); 11 kW 400 to 415 V AC-23A); 7.5 kW 400 to 415 V AC-3)

IEC Terminal Connection Power circuit screw clamp terminals 0.02 inÃÂ² (10 mmÃÂ²) solid; Power circuit screw clamp terminals 0.01 inÃÂ² (6 mmÃÂ²) flexible - with cable end

Intermittent Duty Class 30

Ip Degree Of Protection IP20 conforming to IEC 60529 || IP65

Making Capacity 320 A 400 V AC-21A || 320 A 400 V AC-22A || 320 A 400 V AC-23A

Marking 0 - 1

Mechanical Durability 100000 cycles

Mechanical Robustness vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Mounting Method Hole 0.89 in (22.5 mm) handle; By clips switch; By screws switch

Mounting Support handle door || switch symmetrical rail || switch plate

Network Type AC || DC

Package Quantity 1

Performance Level high performance

Poles Description 3P

Product Certifications UL || CCC || CSA || GL || UKCA

Product Name TeSys VARIO

Product Or Component Type emergency stop switch disconnector

Product Type Switch Kit/20 Ampere

Protective Treatment TC

Range TeSys

Rated Conditional Short Circuit Current 10 kA 400 V 35 A aM; 10 kA 400 V 35 A gG

Rated Conditional Short-Circuit Current 10 kA 400 V 35 A aM || 10 kA 400 V 35 A gG

Rated Operational Power In W 11 kW 500 V AC-23A) || 15 kW 690 V AC-23A) || 7.5 kW 500 V AC-3) || 7.5 kW 690 V AC-3) || 1.5 kW 230 to 240 V AC-3) || 5.5 kW 230 to 240 V AC-23A) || 11 kW 400 to 415 V AC-23A) || 7.5 kW 400 to 415 V AC-3)

Rotary Handle Mounting Style extended

Rotary Handle Padlocking 1 to 3 padlocks 4-8 mm

Standards IEC 60947-3

Suitability For Isolation yes

Tightening Torque power circuit 2.1-2.1 N.m screw clamp terminals

Width 60 mm

[Icm] Rated Short-Circuit Making Capacity 1 kA 400 V at Ipeak

[Icw] Rated Short-Time Withstand Current 384 A 400 V 1 s

[Ie] Rated Operational Current 21.8 A AC-23 Ue: 400 V

[Ithe] Conventional Enclosed Thermal Current 25 A

[Ith] Conventional Free Air Thermal Current 32 A

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz
