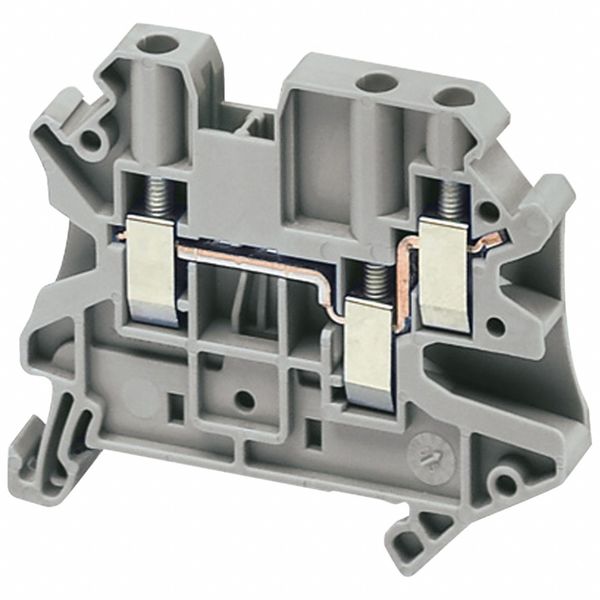

Terminal block, 30 A, 10 AWG, 10 AWG

SKU
Brand Square D
Categories
Description Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 30 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 10 AWG, Housing Color Gray, Maximum Voltage 150 V AC, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 47.5 mm, Overall Length 57.8 mm, Overall Width 6.2 mm
graingerSKU: null, mscSKU: null, zoro_no: G905848773, mongo_id: 65bbe6a53aaddbd5a9043c8a

Web Price

$5.44 / each

Qty

Product Details

Accessory / Separate Part Category connection accessory

Ambient Air Temperature For Operation -40-130ÃÂ°C IEC 60216-1 || -40-130ÃÂ°C VDE 0304-T21

Cable Cross Section 0.14-6 mmÃÂ², solid with cable end || 0.2-4 mmÃÂ², flexible with cable end || 0.14-6 mmÃÂ², flexible without cable end || 0.14-6 mmÃÂ², solid without cable end

Circuit Protection Type None

Color Gray

Compatible with Product Type Special Enclosures

Connection Position sideways

Connection Type Screw Clamp

Connections - Terminals 1 x screw terminal upstream M3) || 2 x screw terminal downstream M3)

Country of Origin (subject to change) Germany

Creep Resistance 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Current 30 A

Device Short Name TRV

Dielectric Constant 3.7 at 1 MHz

Dielectric Loss 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Dielectric Strength 1000 V IEC 60243-1

Flame Retardance V0 0.8 mm UL 94

For Conductor Material Not Applicable

For Conductor Type Not Applicable

For Fuse Diameter Not Applicable

For Fuse Length Not Applicable

For Maximum Wire Size 10 AWG

For Minimum Wire Size 26 AWG

Height 47.5 mm

Housing Color Gray

Housing Material Polyamide 6/6

Length 57.8 mm

Line Rated Current 32-32 A EN/IEC 60947-7-1 || 30-30 A cURus || 29-29 A ATEX Exe II Ex II 2 GD

Material polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring

Maximum Operating Temperature 266 Degrees F

Maximum Voltage 150 V AC

Minimum Operating Temperature -40 Degrees F

Mounting Mode clip-on

Nominal Cross Section 4 mmÃÂ²

Number of Connections 3

Number Of Measurement Input 2

Number of Poles 1

Number Of Terminals 3

Number of Tiers 1

Overall Depth 47.5 mm

Overall Length 57.8 mm

Overall Width 6.2 mm

Package Quantity 1

Product Certifications EAC || CSA || cURus || IEC-Ex || LR || GL || ATEX || DNV

Product Compatibility Spacial enclosures

Product Name Linergy TR

Product Or Component Type terminal block

Range Linergy

Range Compatibility Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Resistivity 10000 MÃ¢ÂÂ¦.m IEC 60093 || 10000 MÃ¢ÂÂ¦.m VDE 0303-T30

RoHS Compliant Yes

Special Features Linergy Terminal Blocks have Push-In Type and Spring Type and Screw Type Terminal Blocks, The Blocks are UL Component Recognized and CSA Certified and Meet IEC Requirements, The Linergy Line of Terminal Blocks Offers a Wide Selection of Blocks and Accessories, The Terminals Will Accept Wires from 26 AWG to 10 AWG, This Gray Grounding Terminal Block has 3 Terminal Points, This Terminal Block has Screw Termination, with the Help of a Screw Driver the Block Will Mount on 35 mm Din Rail

Standards ATEX, CSA, cULus, DNV, EAC, GL, IECEx, LR

Strip Length 9 mm

Surface Resistance 1000 GÃ¢ÂÂ¦ IEC 60093 || 1000 GÃ¢ÂÂ¦ VDE 0303-T30

Terminal Block Level 1

Terminal Block Type Pass-Through

Termination Style Screw-On

Tightening Torque 0.6-0.8 N.m

Tool Type connection screwdriver || disconnection screwdriver

Torque 7 in-lb

UL 94 Flammability Rating V-0

Width 6.2 mm

Wire Size Ranges 26 AWG - 10 AWG
