Home / Terminal Block, 40 Amp

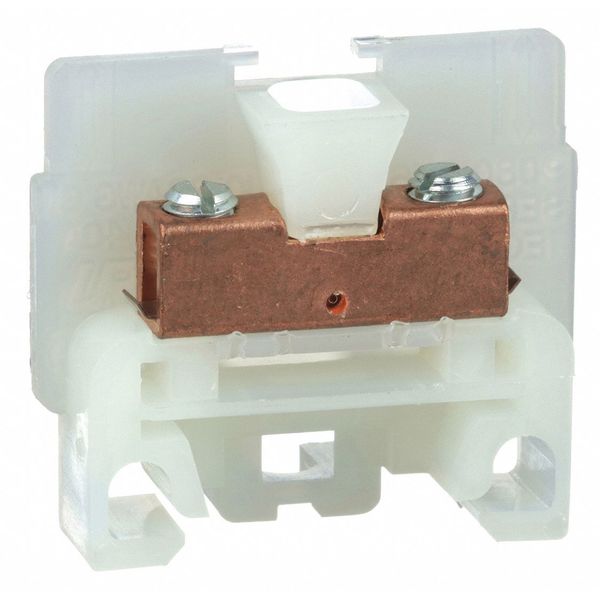

Terminal Block, 40 Amp
Terminal Block, 40 Amp

Terminal Block, 40 Amp

  • Square D
  • Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 40 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Housing Color Natural, Maximum Voltage 600 V AC/DC, Mounting Type Panel, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 3 1/32 in, Overall Depth 0.35 in, Overall Length 1.39 in, Overall Width 1.4 in, Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized

    graingerSKU: 5B364, mscSKU: 36834166, zoro_no: G2647197, mongo_id: 65bbe81522d7a989a98d7765

Web Price
$3.94 / each
Qty

Product Details

5B366
5B366
5B365
5B365
-40-257°F
40 A
AWG 22...AWG 10 copper
Nylon
CSA file 62144 class 6228 01; CE; UL recognized E60616 CCN XCFR2
35mm/GH
None
natural
9080 GH21, 9080 GH31, 9080 GH52, 9080 GH61, GH10, GH136, GH220, GH236, GH336, GH60, GK6B
Screw Clamp
lug copper 11-12 lbf.in : AWG 22...AWG 10 copper)
Mexico
40 A
40 A CSA; 70 A UL

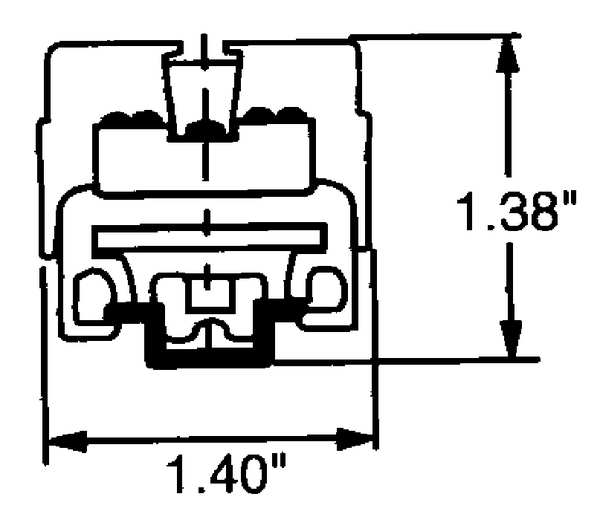

1.4 in
copper box lugs
Lug copper 11 to 12 lbf.in (1.24 to 1.36 N.m) : AWG 22 to AWG 10 copper)
5B363
5B363
35 mm
Copper
Solid, Stranded
3 1/32 in
10 AWG
22 AWG
1.39 in
Natural
Nylon
Adhesive Backed Strips, End Barrier, End Clamps, Fanning Strip, Marking Strip End Plug, Mounting Track, Vinyl Marking Strip
40-40 A CSA || 70-70 A UL
standard
Nylon: block
10 AWG
257 Degrees F
600 V AC/DC
22 AWG
-40 Degrees F
9080GH track || panel
Surface or DIN
2
1
35 per foot
2
0.35 in
1.39 in
1.4 in
1
34
CSA file 62144 class 6228 01 || CE || UL recognized E60616 CCN XCFR2
GK6B
terminal block
Yes
CE, CSA Approved, RoHS Compliant, UL Component Recognized
-40 Degrees to 275 Degrees F
Solderless Box Lug
Copper
Solderless Box Lug
Screw
12 lb-in
V-2
600V AC
0.35 in
AWG 22 to AWG 10 copper
22 AWG - 10 AWG
600 V AC/DC
