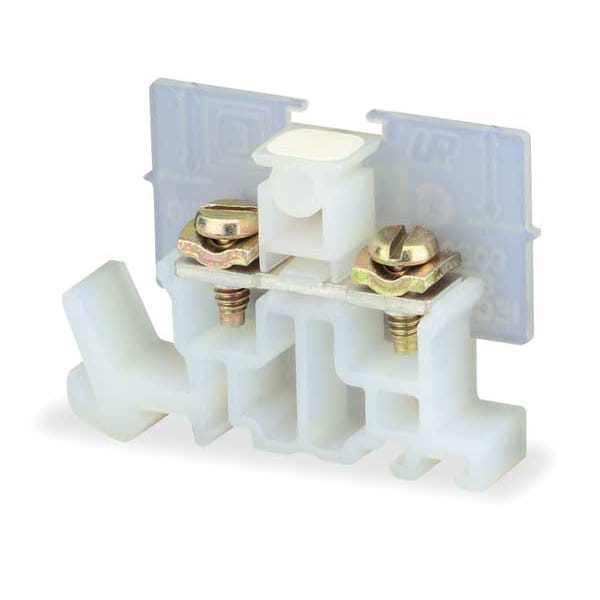

Terminal Block, 40 Amp

Terminal Block, 40 Amp

  • Square D
  • Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 40 A, For Minimum Wire Size 18 AWG, For Maximum Wire Size 12 AWG, Housing Color Natural, Maximum Voltage 600 V AC/DC, Mounting Type DIN, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 3 1/32 in, Overall Depth 0.37 in, Overall Length 1.48 in, Overall Width 1.8 in, Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized

    graingerSKU: 5B360, mscSKU: 69682219, zoro_no: G0598071, mongo_id: 65bbe8bc22d7a989a9910baa

Web Price
$4.31 / each
Qty

Product Details

2DD04
2DD04
2DD05
2DD05
-40-257°F
40 A
AWG 18...AWG 12 copper
Nylon
CE; UL recognized E60616 CCN XCFR2; CSA file 62144 class 6228 01
35mm/GH
None
natural
9080 GH22, 9080 GH31, GH10, GH11, GH136, GH220, GH236, GH336, GH60, GP6B, MH320, MH339, MH379, MHA10
Screw Clamp
clamp terminal zinc plated steel 18-20 lbf.in : AWG 18...AWG 10 copper)
Mexico
40 A
40 A UL; 40 A CSA
1.8 in
pressure wire clamp
Clamp terminal zinc plated steel 18 to 20 lbf.in (2.03 to 2.26 N.m) : AWG 18 to AWG 10 copper)
5B359
5B359
35 mm
Copper
Solid, Stranded
3 1/32 in
12 AWG
18 AWG
1.48 in
Natural
Nylon
Adhesive Backed Strips, End Barrier, End Clamps, Marking Strip End Plug, Mounting Track, Vinyl Marking Strip
40-40 A UL || 40-40 A CSA
standard
Nylon: block; Tin plated brass: busbar
12 AWG
257 Degrees F
600 V AC/DC
18 AWG
-40 Degrees F
9080GH track || 35 mm DIN rail
DIN
2
1
32 per foot
2
0.37 in
1.48 in
1.8 in
1
32
CE || UL recognized E60616 CCN XCFR2 || CSA file 62144 class 6228 01
GP6B
terminal block
Yes
CE, CSA Approved, RoHS Compliant, UL Component Recognized
-40 Degrees to 275 Degrees F
Self-Lifting Pressure Wire Connector
Self-Lifting Pressure Wire Connector
Screw
20 lb-in
V-2
600V AC
0.38 in
AWG 18 to AWG 12 copper
18 AWG - 12 AWG
600 V AC/DC
