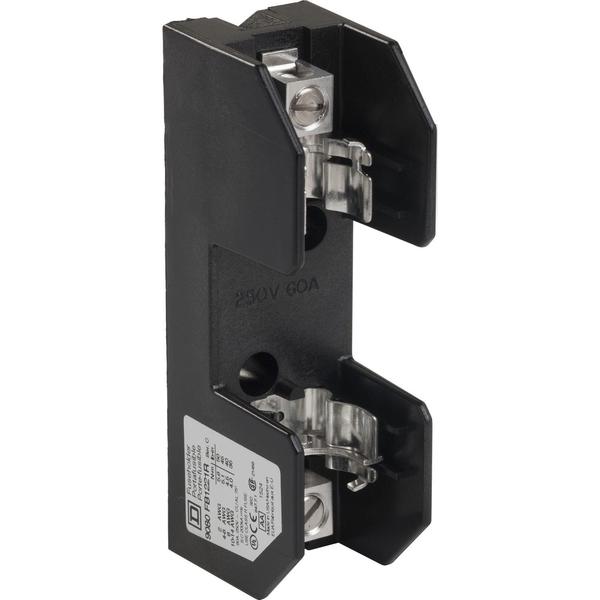

Terminal Block Fuseholder 250V 60A Tfb

SKU
Brand Square D
Categories
Description Terminal Block Fuseholder 250V 60A Tfb

Web Price

$57.19 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-257ÃÂ°F

Awg Gauge AWG 14...AWG 2 copper or aluminium

Block Material Thermoplastic: block

Connections - Terminals lugs 50 lbf.in AWG 3...AWG 2 copper or aluminium || lugs 45 lbf.in AWG 6...AWG 4 copper or aluminium || lugs 40 lbf.in AWG 8 copper or aluminium || lugs 35 lbf.in AWG 12...AWG10 copper or aluminium || lugs 35 lbf.in AWG 14 copper

Country of Origin (subject to change) United States

Depth 2.01 in

Electrical Connection box lugs

Fuse Size 0.8125 x 3 in

Fuse Type R

Height 4.83 in

Line Rated Current 60 A

Material thermoplastic block

Mounting Support surface mount

Number of Poles 1

Operating Temperature -40 to 257ÃÂ°F (-40 to 125ÃÂ°C)

Package Quantity 1

Product Certifications CE || UL listed file E40747 CCN IZLT || CSA file 70360 class 6225 01

Product Or Component Type fuse holder

Rated Operational Voltage Less than or Equal to 250 V AC/DC

Terminal Tightening Torque lugs 50 lbf.in (5.65 N.m) AWG 3 to AWG 2 copper or aluminium; lugs 45 lbf.in (5.08 N.m) AWG 6 to AWG 4 copper or aluminium; lugs 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium; lugs 35 lbf.in (3.95 N.m) AWG 12 to AWG10 copper or aluminium; lugs 35 lbf.in (3.95 N.m) AWG 14 copper

Width 1.48 in

Wire Gauge AWG 14 to AWG 2 copper or aluminium

Wire Stripping Length 0.5625 in

[Ics] Rated Service Breaking Capacity 200 kA UL 512

[Ue] Rated Operational Voltage <= 250 V AC/DC
