Home / Terminal Blocks, 12 AWG, 12 AWG

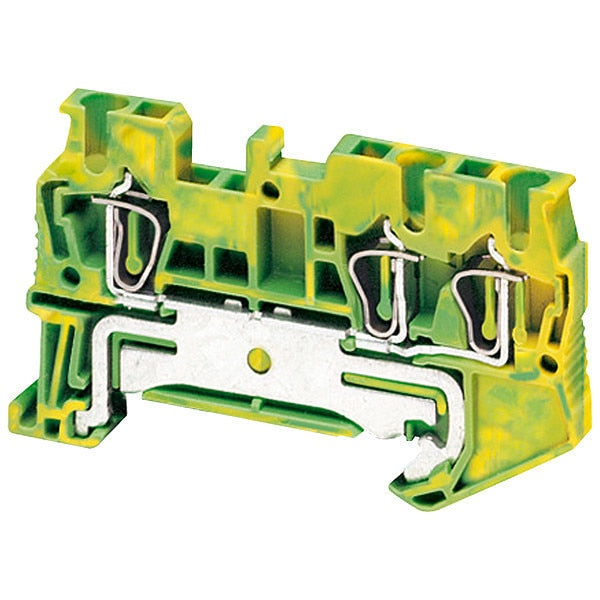

Terminal Blocks, 12 AWG, 12 AWG

SKU
Brand Square D
Categories
Description Terminal Block, Circuit Protection Type None, Connection Type Spring, Current 20 A, For Minimum Wire Size 28 AWG, For Maximum Wire Size 12 AWG, Housing Color Green/Yellow, Maximum Voltage 600 V, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 36.5 mm, Overall Length 60.5 mm, Overall Width 5.2 mm
graingerSKU: 796A36, mscSKU: , zoro_no: G205848770, mongo_id: 65bbe76f9a749db82273a21a

Web Price

$8.94 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-130ÃÂ°C IEC 60216-1 || -40-130ÃÂ°C VDE 0304-T21

Cable Cross Section 0.08-4 mmÃÂ², solid || 0.2-2.5 mmÃÂ², flexible with cable end || 0.08-2.5 mmÃÂ², flexible without cable end

Circuit Protection Type None

Color green-yellow

Compatible with Product Type Special Enclosures

Connection Position top

Connection Type Spring

Connections - Terminals 1 x spring terminal upstream || 2 x spring terminal downstream

Country of Origin (subject to change) Germany

Creep Resistance 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Current 20 A

Device Short Name TRR

Dielectric Constant 3.7 at 1 MHz

Dielectric Loss 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Dielectric Strength 1000 V IEC 60243-1

Flame Retardance V0 0.8 mm UL 94

For Conductor Material Not Applicable

For Conductor Type Not Applicable

For Fuse Diameter Not Applicable

For Fuse Length Not Applicable

For Maximum Wire Size 12 AWG

For Minimum Wire Size 28 AWG

Height 36.5 mm

Housing Color Green/Yellow

Housing Material Polyamide 6/6

Length 60.5 mm

Material polyamide 6/6 insulating case

Maximum Operating Temperature 266 Degrees F

Maximum Voltage 600 V

Minimum Operating Temperature -40 Degrees F

Mounting Mode clip-on

Nominal Cross Section 2.5 mmÃÂ²

Number of Connections 3

Number Of Measurement Input 2

Number of Poles 1

Number Of Terminals 3

Number of Tiers 1

Overall Depth 36.5 mm

Overall Length 60.5 mm

Overall Width 5.2 mm

Package Quantity 1

Product Certifications VDE || DNV || ATEX || LR || IEC-Ex || GL || cURus || EAC || CSA

Product Compatibility Spacial enclosures

Product Name Linergy TR

Product Or Component Type terminal block

Range Linergy

Range Compatibility Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Resistivity 10000 MÃ¢ÂÂ¦.m IEC 60093 || 10000 MÃ¢ÂÂ¦.m VDE 0303-T30

RoHS Compliant Yes

Special Features A Screw Driver is Used to Clamp this Block to the 35 mm Din Rail to Make the Ground Connection, Each Block is 1.44 in Tall/0.20 in Wide and 2.38 in Deep. Each Weighs 0.41 oz. the Blocks are Sold in Boxes of 50, The Blocks are UL Component Recognized and CSA Certified and Meet IEC Requirements, The Linergy Line of Terminal Blocks Offers a Wide Selection of Blocks and Accessories. Linergy Terminal Blocks have Push-In Type and Spring Type and Screw Type Terminal Blocks. This Green/Yellow Grounding Terminal Block has 3 Terminal Points, This Terminal Block has Spring Termination. the Terminals Will Accept Wires from 28 AWG to 12 AWG

Standards ATEX, CSA, cULus, DNV, EAC, GL, IECEx, LR, VDE

Strip Length 10 mm

Surface Resistance 1000 GÃ¢ÂÂ¦ IEC 60093 || 1000 GÃ¢ÂÂ¦ VDE 0303-T30

Terminal Block Level 1

Terminal Block Type Grounding

Termination Style Spring Terminals

Tool Type connection flat screwdriver || disconnection flat screwdriver

UL 94 Flammability Rating V-0

Width 5.2 mm

Wire Size Ranges 28 AWG - 12 AWG

Wire Stripping Length 10 mm
