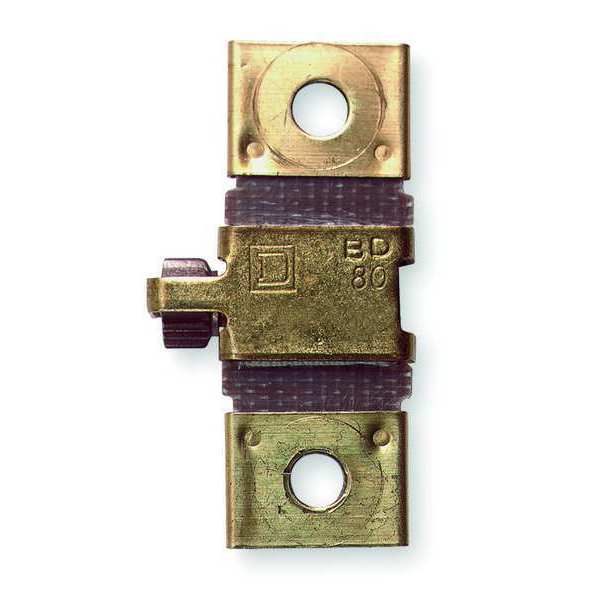

Thermal Unit, 12 to 18A

SKU
Brand Square D
Categories
Description Thermal Unit, Trip Class 20, Overload Protection Type Melting Alloy, Full Load Current 11.3 to 12 A, 11.4 to 12 A, 12 to 12 A, 12.8 to 14.3 A, 13.3 to 14.9 A, 13.8 to 15.4 A, 14 to 15.7 A, 14 to 16.1 A, 15.1 to 18 A, 15.8 to 17.8 A, 15.8 to 17.9 A, NEMA Size 0, 00, 1, 1P, 2, Frame Size B, S, Compatible with Grainger Part Number 1H411, 1H415, 1H416, 1H417, 2BW14, 2BW2, 2BW22, 2BW23, 2BW25, 2BW31, 2BW35, 2BW36, 2BW37, 2BW41, 2BW7, 2PYD9, 2PYE6, 2PYE8, 48P834
graingerSKU: 1H617, mscSKU: 69526002, zoro_no: G1635094, mongo_id: 65bbe97a22d7a989a995b2d7

Web Price

$44.99 / each

Qty

Product Details

Compatible Manufacturer Part Number 2510MBA1, 2510MBG1, 2510MBO1, 2510MBW1, 2510MBW11, 2510MCA1, 2510MCA2, 2510MCA3, 2510MCG1, 2510MCG2, 2510MCG3, 2510MCO3, 2510MCW1, 2510MCW11, 2510MCW13, 2510MCW2, 2510MCW3, 2510TBG1, 2510TCG1, 2510TCG3, 9065SEO8

Compatible with Manufacturer Model Number 2510MBA1, 2510MBG1, 2510MBO1, 2510MBW1, 2510MBW11, 2510MCA1, 2510MCA2, 2510MCA3, 2510MCG1, 2510MCG2, 2510MCG3, 2510MCO3, 2510MCW1, 2510MCW11, 2510MCW13, 2510MCW2, 2510MCW3, 2510TBG1, 2510TCG1, 2510TCG3, 9065SEO8

Country of Origin (subject to change) Mexico

FL Amp @ 1-Ph/ DP 20-30A/ Standard Enclosure 15.4

FL Amp @ 1-Ph/ DP 40A/ Standard Enclosure 16.0

FL Amp @ 1-Ph/ DP 50A/ Standard Enclosure 15.9

FL Amp @ 1-Ph/ Man. Size 0/ Open & Large Enclosure 18.0

FL Amp @ 1-Ph/ Man. Size 0/ Standard Enclosure 16.1

FL Amp @ 1-Ph/ Man. Size 1/ Open & Large Enclosure 17.4

FL Amp @ 1-Ph/ Man. Size 1/ Standard Enclosure 16.0

FL Amp @ 1-Ph/ Man. Size 1P/ Open & Large Enclosure 17.4

FL Amp @ 1-Ph/ Man. Size 1P/ Standard Enclosure 16.0

FL Amp @ 1-Ph/ Size 00,0,1/ Open & Large Enclosure 15.4

FL Amp @ 1-Ph/ Size 00,0,1/ Standard Enclosure 14.9

FL Amp @ 1-Ph/ Size 1P/ Open & Large Enclosure 15.7

FL Amp @ 1-Ph/ Size 1P/ Standard Enclosure 15.7

FL Amp @ 1-Ph/ Size 2/ Standard Enclosure 16.5

FL Amp @ 3-Ph/ DP 20-30A/ Open & Large Enclosure 14.6

FL Amp @ 3-Ph/ DP 20-30A/ Standard Enclosure 13.4

FL Amp @ 3-Ph/ DP 40A/ Open & Large Enclosure 15.1

FL Amp @ 3-Ph/ DP 40A/ Standard Enclosure 14.4

FL Amp @ 3-Ph/ DP 50A/ Open & Large Enclosure 14.8

FL Amp @ 3-Ph/ DP 50A/ Standard Enclosure 14.2

FL Amp @ 3-Ph/ Man. Size 1/ Open & Large Enclosure 14.0

FL Amp @ 3-Ph/ Man. Size 1/ Standard Enclosure 13.6

FL Amp @ 3-Ph/ Size 00,0,1/ Open & Large Enclosure 13.70

FL Amp @ 3-Ph/ Size 00,0,1/ Standard Enclosure 12.00

FL Amp @ 3-Ph/ Size 2/ Open & Large Enclosure 14.40

FL Amp @ 3-Ph/ Size 2/ Standard Enclosure 13.6

For Use With Square D NEMA Motor Starters 00, 0, 1, 1P, 2

Frame Size B, S

Full Load Amps 12 to 18

Full Load Current 11.3 to 12 A, 11.4 to 12 A, 12 to 12 A, 12.8 to 14.3 A, 13.3 to 14.9 A, 13.8 to 15.4 A, 14 to 15.7 A, 14 to 16.1 A, 15.1 to 18 A, 15.8 to 17.8 A, 15.8 to 17.9 A

Motor Tripping Class 20

NEMA Size 0, 00, 1, 1P, 2

Overload Protection Type Melting Alloy

Package Quantity 1

Sensing Method Melting Alloy

Thermal Overload Type melting alloy

Trip Class 20
