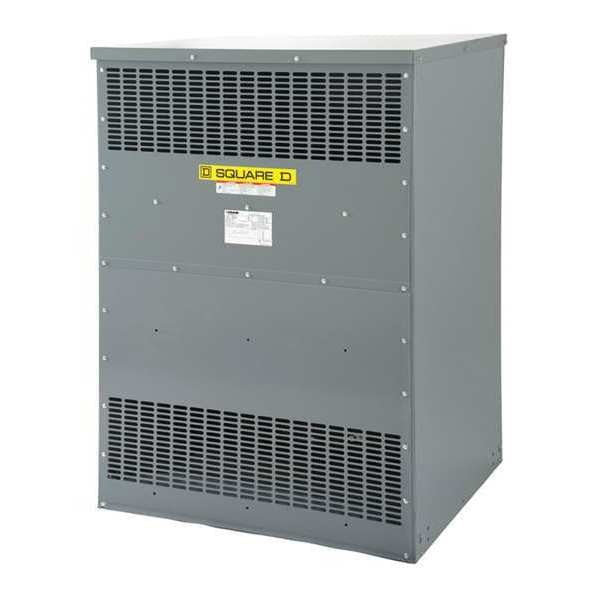

Three Phase Transformer, 225kVA, 208VAC

Three Phase Transformer, 225kVA, 208VAC

  • Square D
  • Three Phase Transformer, Input Voltage - Transformer 208V AC Delta, Output Voltage - Transformer 277V AC, 480V AC Wye, VA Rating - Transformer 225 kVA, Mounting - Transformer Floor, Outdoor Rated - Transformer No, Voltage Function - Transformer Step Up, Winding Material - Transformer Aluminum, Hz - Electrical 60 Hz, Temp. Rise 150 Degrees C, Enclosure Rating NEMA 1 (Convertible to NEMA 3R by Adding Weather Shield)

    graingerSKU: null, mscSKU: null, zoro_no: G0127965, mongo_id: 65bbe5f53aaddbd5a9ff8f4c

Web Price
$27,381.24 / each
Qty

Product Details

40-40°C
30°C
25J
1478.944115323696 16.6 % || 1991.4113747499998 25 % || 4741.171308999999 50 % || 9324.10453275 75 % || 15740.211045999999 1.0 %
United States
UL type 1 || UL type 2, with 7400DS25J || UL type 3R, with 7400WS25J
32.75 in
low voltage electrical distribution
DOE 2016
99.06% at 35% load factor , 167°F (75.0°C)
99.06 % at 35 % load factor , 75.0°C
6 Hole Nema Pad secondary 11.1 mm || 4 Hole Nema Pad (2 sided) primary 11.1 mm || 8 Hole Nema Pad sec - HO 11.1 mm
NEMA 1 (Convertible to NEMA 3R by Adding Weather Shield)
Indoor
57.5 in
60 Hz
60
208VAC
208V AC Delta
Three Phase Transformer
No Knockout
aluminium
Floor
Floor
Floor
floor || floor, with 7400FMB
60 Hz
6 dB NEMA ST-20 || 49 dB
1 5 % FCAN || 2 5 % FCBN
No
480VAC Wye/277VAC
277V AC, 480V AC Wye
1
0.00058
0.000544
3 phase
Three
208 V delta
transformer
225 kVA
480Y/277 V
6 dB NEMA ST-20; 49 dB
NEMA ST-20, UL Listed
315.0 no load (core loss) || 4298.0 load loss (coil loss)
150 Degrees C
220°C insulated || 150°C
1478.944115323696 16.6%; 1991.4113747499998 25%; 4741.171308999999 50%; 9324.10453275 75%; 15740.211045999999 1.0%
315.0 no load (core loss); 4298.0 load loss (coil loss)
energy efficient
natural convection
225kVA
225 kVA
Step Up
40.07 in
Aluminum
2.85
4.7 kA
10 kV
