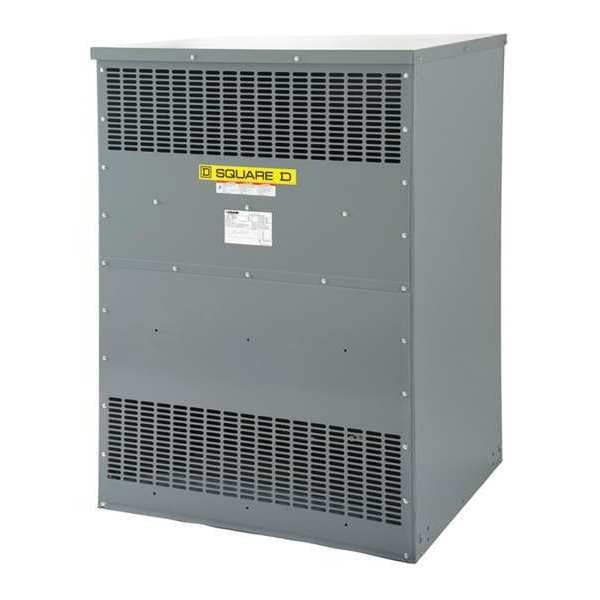

Three Phase Transformer, 225kVA, 480VAC

Three Phase Transformer, 225kVA, 480VAC

  • Square D
  • Three Phase Transformer, Input Voltage - Transformer 480V AC Delta, Output Voltage - Transformer 120V AC, 208V AC Wye, VA Rating - Transformer 225 kVA, Mounting - Transformer Floor, Outdoor Rated - Transformer No, Voltage Function - Transformer Step Down, Winding Material - Transformer Aluminum, Hz - Electrical 60 Hz, Temp. Rise 150 Degrees C, Enclosure Rating NEMA 1 (Convertible to NEMA 3R by Adding Weather Shield)

    graingerSKU: 45NZ34, mscSKU: , zoro_no: G0127974, mongo_id: 65bbe94a22d7a989a9946e8c

Web Price
$15,093.74 / each
Qty

Product Details

40-40°C
30°C
25J
1451.2286916602 16.6 % || 1984.8003496249999 25 % || 4847.8007465 50 % || 9619.468074625 75 % || 16299.802333999998 1.0 %
Mexico
UL type 1 || UL type 2, with 7400DS25J || UL type 3R, with 7400WS25J
32.75 in
low voltage electrical distribution
DOE 2016
99.06% at 35% load factor , 167°F (75.0°C)
99.06 % at 35 % load factor , 75.0°C
4 Hole Nema Pad primary 11.1 mm || 6 Hole Nema Pad secondary 11.1 mm || 8 Hole Nema Pad sec - XO 11.1 mm
NEMA 1 (Convertible to NEMA 3R by Adding Weather Shield)
Indoor
57.5 in
60 Hz
60
480VAC
480V AC Delta
Three Phase Transformer
No Knockout
aluminium
Floor
Floor
Floor
floor || floor, with 7400FMB
60 Hz
6 dB NEMA ST-20 || 49 dB
2 2.5 % FCAN || 4 2.5 % FCBN
No
208VAC Wye/120VAC
120V AC, 208V AC Wye
1
0.044
0.000388
3 phase
Three
480 V delta
transformer
225 kVA
208Y/120 V
6 dB NEMA ST-20; 49 dB
NEMA ST-20, UL Listed
302.0 no load (core loss) || 4475.0 load loss (coil loss)
150 Degrees C
220°C insulated || 150°C
1451.2286916602 16.6%; 1984.8003496249999 25%; 4847.8007465 50%; 9619.468074625 75%; 16299.802333999998 1.0%
302.0 no load (core loss); 4475.0 load loss (coil loss)
energy efficient
natural convection
225kVA
225 kVA
Step Down
40.07 in
Aluminum
1.95
14.3 kA
10 kV
