Home / Vacuum Switch, 0.8 to 9"Hg, Stndrd/Reverse
Vacuum Switch, 0.8 to 9

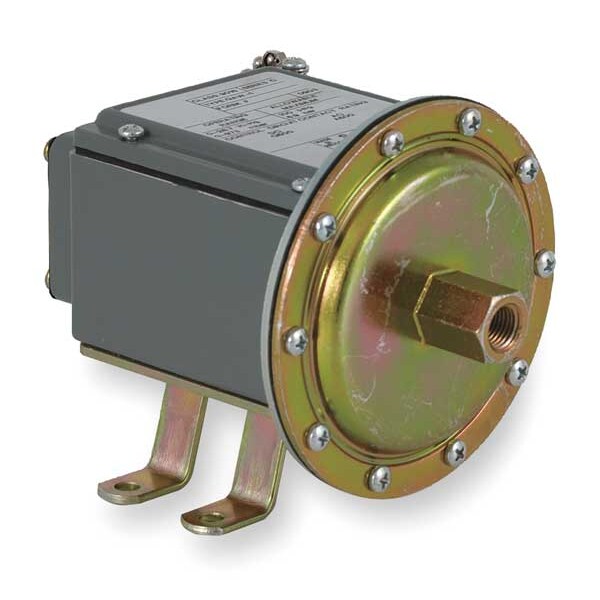

Vacuum Switch, 0.8 to 9"Hg, Stndrd/Reverse

  • Square D
  • Vacuum Switch, Range 0 to 28.7 in Hg, Contact Form SPDT, Port Type 1-Port 1/4-18 in FNPT, NEMA Rating 13, 4, 4X, Action Standard, Differential 0.8 to 9 in Hg, 9013GAW Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F, Features Mounting Feet

    graingerSKU: 3HAL7, mscSKU: , zoro_no: G2914877, mongo_id: 65bbe6bf3aaddbd5a904df35

Web Price
$497.49 / each
Qty

Product Details

Standard
10-185°F
10-185°F
-10 Degrees to 185 Degrees F
1.3-7.4 inHg
0.5 inch NPT conduit entrance
SPDT
NC-NO, SPDT, Form Z, snap action, silver nickel contacts
air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F)
Mexico
4.9 in
sensitive control application
9016G
0.8 to 9 in Hg
control circuit
screw-clamp terminals AWG 22...AWG 12
die cast aluminium alloy 380
with mounting bracket
Mounting Feet
0.25 inch 18 NPTF UL 508
6.45 in
3 A 240 V AC A600 NEMA rating designation || 6 A 120 V AC A600 NEMA rating designation || 0.27 A 250 V DC R300 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation
without
without
3M Scotch-Grip 847 rubber and gasket adhesive || nitrile (Buna-N) || zinc plated steel
120 cyc/mn
100 psi
5000000 cycles
-14 Degrees to 250 Degrees F
NEMA 4/4X/13 UL 698
13, 4, 4X
any position
1
1-Port 1/4-18 in FNPT
diaphragm nitrile (Buna-N)
CSA file LR25490 || UL listed file E12158 CCN NKPZ and CCN NTHT
electromechanical vacuum switch
0 to 28.7 in Hg
0-28.7 inHg
0.004
adjustable differential
9013GAW
internal
50 gn IEC 58-2-27
10 A cartridge overload and short-circuit protection gL
UL 508
4 screw terminals
28.7 inHg
regulation between two thresholds
2 gn 40-150 Hz)IEC 68-2-6
4.56 in
