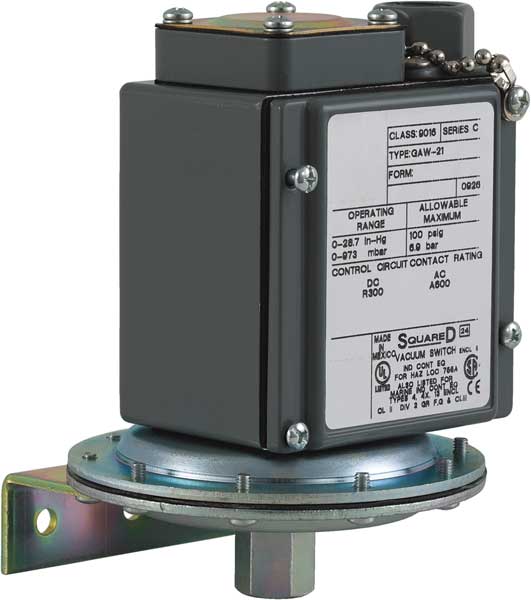

Home / Vacuum Switch, Stndrd/Revers, 0 to 28.3"Hg
Vacuum Switch, Stndrd/Revers, 0 to 28.3

Vacuum Switch, Stndrd/Revers, 0 to 28.3"Hg

  • Square D
  • Vacuum Switch, Range 0 to 28.3 in Hg, Contact Form DPDT, Port Type 1-Port 1/4-18 in FNPT, NEMA Rating 13, 4, 4X, Action Standard, Differential 0.8 to 9 in Hg, 9013GAW Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F

    graingerSKU: null, mscSKU: null, zoro_no: G0582705, mongo_id: 65bbe67b3aaddbd5a9031526

Web Price
$472.49 / each
Qty

Product Details

Standard
10-185°F
10-185°F
-10 Degrees to 185 Degrees F
1.7-7.4 inHg
0.5 inch NPT conduit entrance
DPDT
2(NC-NO), DPDT, Form ZZ, snap action, silver nickel contacts
air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F)
Mexico
4.56 in
sensitive control application
9016G
0.8 to 9 in Hg
control circuit
screw-clamp terminals AWG 22...AWG 12
die cast aluminium alloy 380
0.25 inch 18 NPTF UL 508
6.45 in
3 A 240 V AC A600 NEMA rating designation || 6 A 120 V AC A600 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation || 0.11 A 250 V DC R300 NEMA rating designation
without
without
3M Scotch-Grip 847 rubber and gasket adhesive || zinc plated steel || nitrile (Buna-N)
120 cyc/mn
100 psi
5000000 cycles
-14 Degrees to 250 Degrees F
NEMA 4/4X/13 UL 698
13, 4, 4X
any position
1
1-Port 1/4-18 in FNPT
diaphragm nitrile (Buna-N)
UL listed file E12158 CCN NKPZ and CCN NTHT || CSA file LR25490
electromechanical vacuum switch
0 to 28.3 in Hg
0-28.3 inHg
0.004
adjustable differential
9013GAW
internal
50 gn IEC 58-2-27
10 A cartridge overload and short-circuit protection gL
UL 508
8 screw terminals
28.3 inHg
regulation between two thresholds
2 gn 40-150 Hz)IEC 68-2-6
4.56 in
