Vacuum Swtch, DPST, 5 to 25"Hg, 1/4-18"FNPS

SKU
Brand Square D
Categories

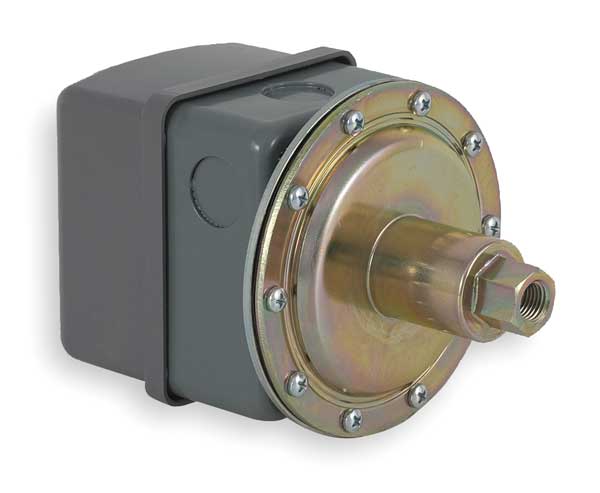

Description Vacuum Switch, Range 5 to 25 in Hg, Contact Form DPST, Port Type 1-Port 1/4-18 in FNPS, NEMA Rating 1, Action Standard, Differential 5 to 10 in Hg, 9013GVG Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F, Features 3 Way Lever, Continuous, Namplate Marked: Float Only, Vacuum and Float
graingerSKU: 3HAM3, mscSKU: , zoro_no: G0637122, mongo_id: 65bbe80f9a749db82276f475

Web Price

$282.49 / each

Qty

Product Details

Action Standard

Ambient Air Temperature For Operation 10-185ÃÂ°F

Ambient Air Temperature For Storage 10-185ÃÂ°F

Ambient Temp. Range -10 Degrees to 185 Degrees F

Approx Adjustable Differential At Mid Range 5-10 inHg

Cable Entry Number 3 knock-outs for 1/2 NPT conduit

Contact Form DPST

Contacts Type And Composition 2 NC, DPST-DB, Form YY, snap action, silver cadmium contacts

Controlled Fluid air -40-250ÃÂ°F) || water -40-250ÃÂ°F) || hydraulic oil -40-250ÃÂ°F) || gas -40-250ÃÂ°F)

Country of Origin (subject to change) Mexico

Cover Material polypropylene, noryl thermoplastic resin or equivalent

Cut Out Range 5-25 inHg

Cut-In Range 0-20 inHg

Depth 4.37 in

Device Application power circuit application

Device Short Name 9016GVG

Differential 5 to 10 in Hg

Electrical Circuit Type power circuit

Electrical Connection screw-clamp terminals AWG 22...AWG 12

Enclosure Material stamped metal

Factory Modification 3-way lever

Features 3 Way Lever, Continuous, Namplate Marked: Float Only, Vacuum and Float

Fluid Connection Type 0.25 inch 18 NPSF UL 508

Height 7.13 in

Local Display without

Materials In Contact With Fluid nitrile (Buna-N) || 3M Scotch-Grip 847 rubber and gasket adhesive || zinc plated steel

Maximum Operating Rate 100 cyc/mn

Maximum Pressure 100 psi

Mechanical Durability 300 cycles

Media Temp. Range -14 Degrees to 250 Degrees F

Motor Power Kw 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.75 kW 5 hp)230 V AC, 3 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phase || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phase || 0.75 kW 1 hp)115 V DC, 3 phase || 0.75 kW 1 hp)230 V DC

Nema Degree Of Protection NEMA 1 UL 698

NEMA Rating 1

Operating Position any position

Package Quantity 1

Port Type 1-Port 1/4-18 in FNPS

Pressure Actuator diaphragm nitrile (Buna-N)

Product Certifications UL listed file E12158 CCN NKPZ || CSA file LR25490

Product Or Component Type electromechanical vacuum switch

Range 5 to 25 in Hg

Repeat Accuracy 0.025

Scale Type adjustable

Series 9013GVG
