Home / 12-10 AWG Non-Insulated Fork Terminal #10 Stud PK50

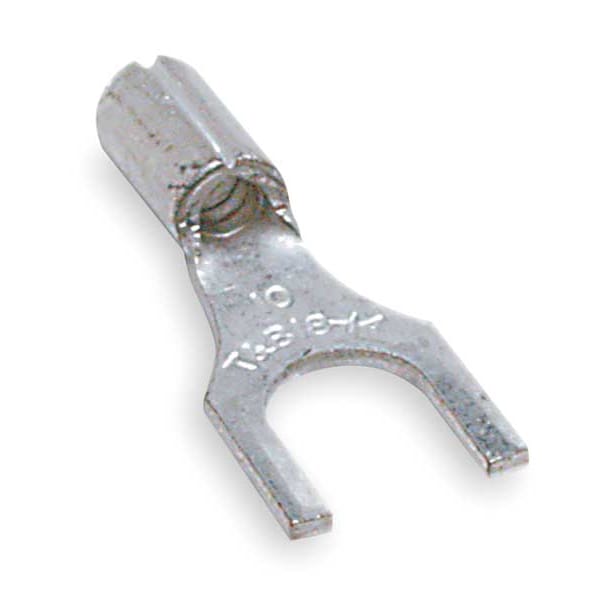

12-10 AWG Non-Insulated Fork Terminal #10 Stud PK50

SKU
Brand Sta-Kon
Categories
Description Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 10 AWG, Stud Size #10, Termination Style Crimp, Tongue Length 0.42 in, RoHS Compliant No, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.36 in, Barrel Style Serrated, Compatible Grainger Part Number 3KH44, 3KH45, 3KH46, 3KH52, 4XMR6
graingerSKU: 3VRR3, mscSKU: , zoro_no: G0426002, mongo_id: 65bbe86b9a749db822790453

Web Price

$38.19 / each

Qty

Product Details

AWG-range 12-10

Barrel Length 0.36 in

Barrel Style Serrated

Color Metallic

Compatible Manufacturer Model Number ERG4002, WT110M, WT111M, WT112M, WT2000

Compatible with Product Type Crimper, Ratchet Crimper

Compatible with Series C115

Connection Material Copper

Connection Type Crimp

Contact Finish Tin

Contact Material Copper

Country of Origin (subject to change) United States

Features These non-insulated fork terminals are made of electrolytic copper for high conductivity.; They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).; Serrated barrel increases grip on wire.; Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002; Alternate Package Qty: C115

Flange shape Fork shape

For Wire Size 10 AWG, 12 AWG

Insulation Color Bare

Insulation Coverage None

Insulation Material None

Insulation Type Non-Insulated

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Operating Temperature 221 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 10 AWG

Minimum Wire Size 12 AWG

Overall Length 0.82 in

Package Quantity 50

RoHS Compliant No

Seam Brazed

Seam Style Brazed

Special Features Can be Installed With Crimping Tools Having a Single Indentor or Double Indentor (Recommended for Solid Wire), Serrated Barrel Increases Grip on Wire, These Non-Insulated Fork Terminals are Made of Electrolytic Copper for High Conductivity

Standard UL E9809

Standards CSA Certified, UL Listed

Stud Size #10

Stud size (imperial) 10

Surface protection Tinned

Terminal Connection Crimp

Terminal Shape Fork

Terminal Type Standard

Termination Crimp Termination Only

Termination Style Crimp

Tongue Length 0.00 - 0.50 inches

Tongue Width 0.38 in
