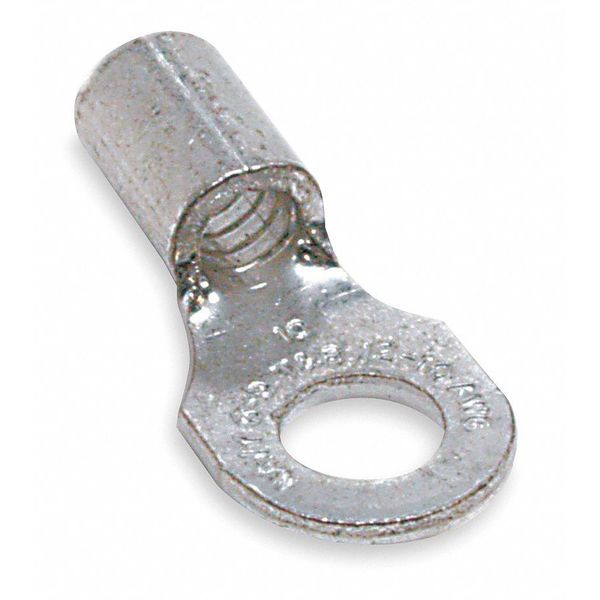

22-16 AWG Non-Insulated Ring Terminal #6 Stud PK100

22-16 AWG Non-Insulated Ring Terminal #6 Stud PK100

  • Sta-Kon
  • Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Termination Style Crimp, Tongue Width 0.25 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed E9809, Barrel Length 0.32 in, Barrel Style Serrated Barrel, Compatible with Product Type Copper Conductors, Hole Spacing 0.27 in, Insulation Type Non-Insulated

    graingerSKU: 3VRT7, mscSKU: , zoro_no: G1523505, mongo_id: 65bbe92822d7a989a993bc36

Web Price
$46.61 / each
Qty

Product Details

22-16
0.32 in
Serrated Barrel
Metallic
Copper Conductors
Copper
Crimp
Tin
Copper
United States
These non-insulated ring terminals are made of electrolytic copper for high conductivity.; They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).; Serrated barrel increases grip on wire.; Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002; Alternate Package Qty: A85
Ring shape
16 AWG, 18 AWG, 20 AWG, 22 AWG
22 AWG to 16 AWG
0.27 in
None
Bare
None
None
Non-Insulated
221 Degrees F
600 V
221 Degrees F
600 V
16 AWG
221 Degrees F
22 AWG
0.72 in
100
0.00 - 0.25 inches
Brazed
Brazed
High Conductivity, Increased Grip
UL E9809
CSA Certified, UL Listed E9809
#6
6
Tinned
Crimp
Ring Terminal
Standard
Crimp Termination Only
Crimp
0.4 in
0.03 in
0.25 in
0.25 in
Non-Insulated Ring Terminal
22 to 16 AWG
22-16 AWG
