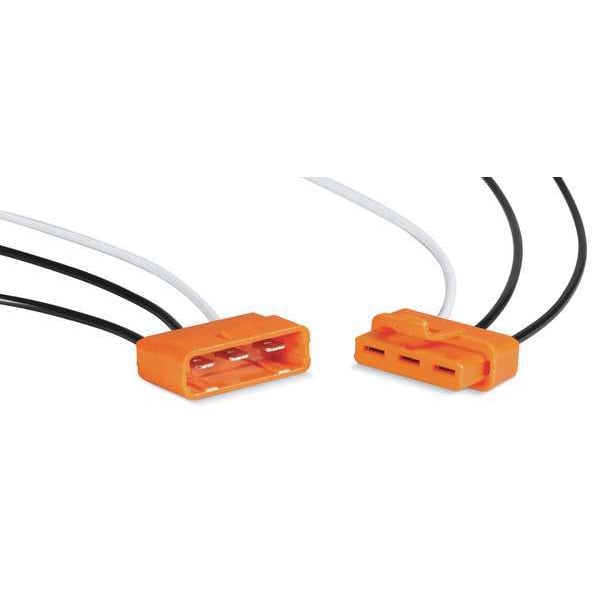

Ballast Dsconnct, 18AWG, 3 Ports, 1.28", PK2

SKU
Brand Sta-Kon
Categories
Description Ballast Disconnect, Color Orange, Connection Type Twist On, Contact Type Plug to Socket, Socket to Plug, For Conductor Material Copper, Gender 2 Male/2 Female, Housing Material Brass, Insulation Material Polycarbonate, Maximum Current 4 A, Maximum Operating Temperature 105 Degrees F, Maximum Voltage 600 V, Standards CEC Part I Rule 30-308(4), NEC 410.73 (G), Application New Installation, Retrofit, Compatible with Series LD3, Contact Material Tin-Plated Brass
graingerSKU: 1DMW3, mscSKU: , zoro_no: G2382755, mongo_id: 65bbe6c73aaddbd5a905229d

Web Price

$12.86 / each

Qty

Product Details

Amperage Rating 4 Amp

Application New Installation, Retrofit

Color Orange

Compatible with Series LD3

Connection Material Tin-Plated Brass

Connection Type Twist On

Contact Material Tin-Plated Brass

Contact Type Plug to Socket, Socket to Plug

Country of Origin (subject to change) Taiwan, Province of China

Current Rating 4A

Features 6 in Wire Leads

For Conductor Material Copper

Gender 2 Male/2 Female

Housing Material Brass

Includes (1) Installation Instructions, (2) Female Load Half, (2) Male Line Half

Insulation Color Orange

Insulation Material Polycarbonate

Insulation Type Polycarbonate

Male/Female 2 Male/2 Female

Material Brass

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Current 4 A

Maximum Operating Temperature 105 Degrees F

Maximum Voltage 600 V

Number of Pieces 20

Number of Ports 3

Overall Length 1.28 in

Package Quantity 2

Product Name electrical con, splice, disconnect

Product Type Disconnects

Special Features Finger-Safe Line Side Prevents Installer From Touching Hot Contacts, Fits Through 1/2 in Knockout, Fool-Proof Design

Special Functions Oversized electrical contacts improve conductivity and reduce temperature rise. Integral wire leads ease installation. Fool-proof design enables mating halves to be installed in only one way. Finger-safe line side prevents installer from touching hot contacts. Rounded compact design small enough to be used in compact applications - fits through 1/2 knockout.

Standard UL E307134

Standards CEC Part I Rule 30-308(4), NEC 410.73 (G)

Surface Finishing Tin Plated

UL 94 Flammability Rating V-2

Voltage Rating 600 V

Wire Size 18 AWG
